Components [06/2018 - 01/2019]

WARNING: This page is about a different variant/trim than selected.

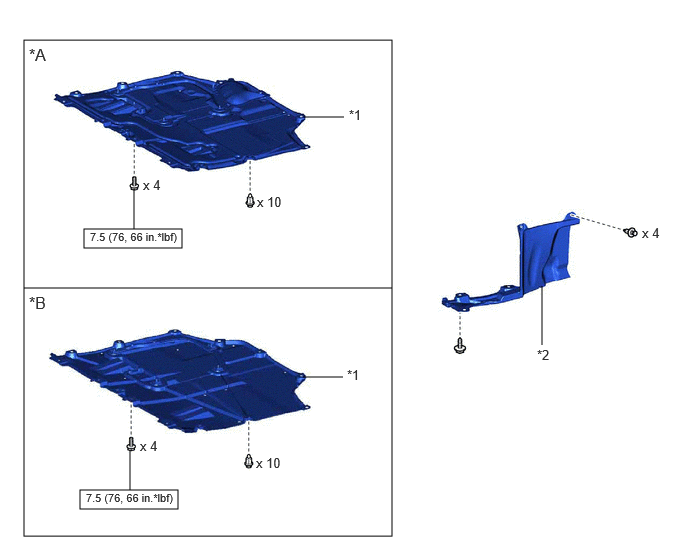

Fig 1: K120 TCM Replacement Components With Torque Specifications [06/2018 - 01/2019] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	REAR ENGINE UNDER COVER LH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

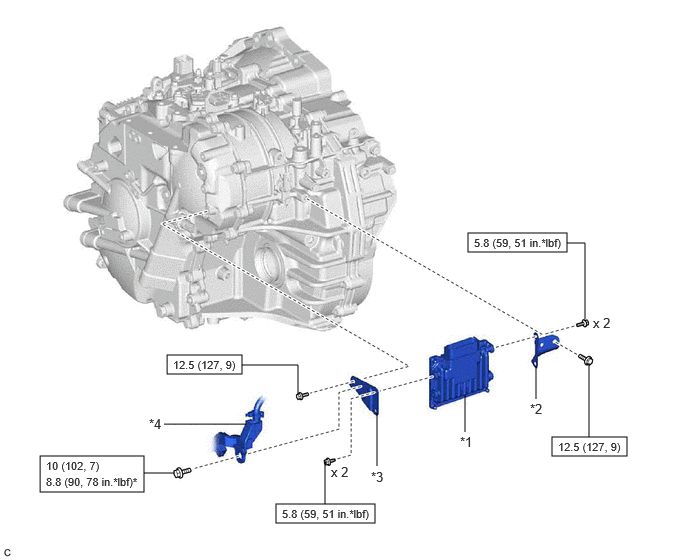

Fig 2: K120 TCM Replacement Components With Torque Specifications [06/2018 - 01/2019] (2 Of 2)

Callout	Description	Callout	Description
*1	TCM	*2	NO. 1 TRANSMISSION CONTROL ECU BRACKET
*3	NO. 2 TRANSMISSION CONTROL ECU BRACKET	*4	ENGINE WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
