Removal [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    NOTE:
    • Do not apply or add any oil or grease to the belt tensioner to prevent abnormal noises from the belt tensioner pulley, belt squealing, etc.
    • Do not allow oil or grease to adhere to the moving parts of the belt tensioner, as this may cause malfunctions.
    GTY743260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

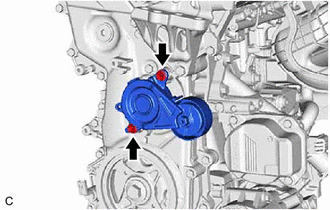

    1. Remove the 2 bolts and V-ribbed belt tensioner assembly from the No. 2 timing chain cover assembly.
      GTY938199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT NO. 2 RADIATOR HOSE
    GTY823636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

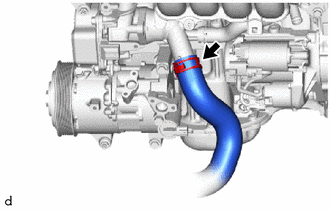

    1. Slide the clip and disconnect the No. 2 radiator hose from the water inlet.
  3. REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY

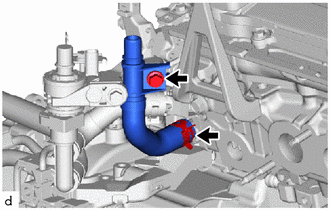

    1. Slide the clip and disconnect the No. 2 water by-pass pipe sub-assembly from the water by-pass outlet sub-assembly.
      GTY809298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 2 water by-pass pipe sub-assembly from the water hose clamp bracket.
  4. REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

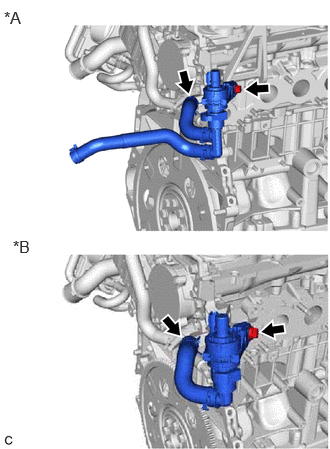

    1. Remove the bolt to disconnect the flow shutting valve (water by-pass hose assembly) from the water hose clamp bracket.
      GTY854097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for CVT
      *B for Manual Transaxle
    2. Slide the clip and remove the flow shutting valve (water by-pass hose assembly) from the water by-pass outlet sub-assembly.

      HINT:

      Use a container to catch any engine coolant which flows out of the flow shutting valve (water by-pass hose assembly) and water by-pass outlet sub-assembly.

  5. REMOVE WATER HOSE CLAMP BRACKET

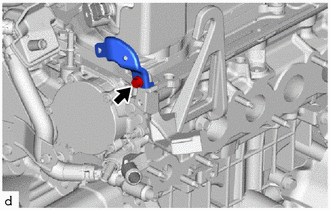

    1. Remove the bolt and water hose clamp bracket from the water hose clamp bracket.
      GTY809294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

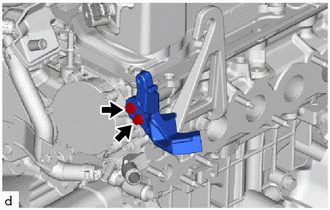

    2. Remove the 2 bolts and water hose clamp bracket from the camshaft housing sub-assembly.
      GTY834756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 8

  7. REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 10

  8. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 4

  10. REMOVE EGR COOLER ASSEMBLY

    Refer to PROCEDURE - Step 5

  11. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  12. REMOVE EGR VALVE ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE NO. 3 WATER BY-PASS PIPE

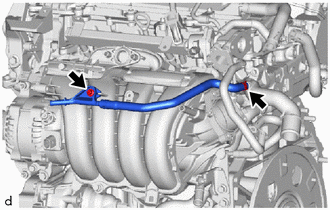

    1. Using an 8 mm socket wrench, remove the bolt and No. 3 water by-pass pipe from the intake manifold.
      GTY809928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 3 water by-pass pipe from the water outlet.
  14. REMOVE INTAKE MANIFOLD STAY

    Refer to PROCEDURE - Step 10

  15. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 12

  16. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 13

  17. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Disconnect the fuel tube sub-assembly from the fuel pump assembly.
      GTY809293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [01/2019 - 03/2019]

    2. Remove the fuel pipe clamp from the fuel tube connector.
      GTY834755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the fuel tube sub-assembly from the fuel delivery pipe with sensor assembly.
      GTY809295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [01/2019 - 03/2019]

  18. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    1. Using an 8 mm socket wrench, remove the bolt.
      GTY834896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
  19. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 8

  20. REMOVE NO. 1 WATER BY-PASS HOSE ASSEMBLY
    1. for Manual Transaxle:

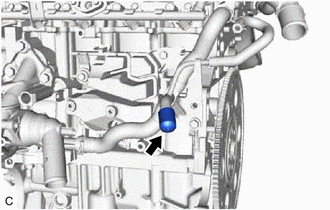

      1. Slide the clip and remove the plug from the No. 1 water by-pass hose assembly.
        GTY995214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

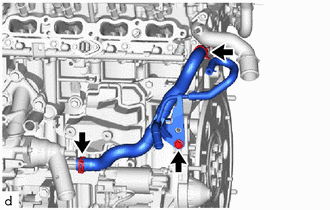

    2. Remove the bolt.
      GTY809934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the 2 clips and remove the No. 1 water by-pass hose assembly from the water inlet with thermostat sub-assembly and cylinder head sub-assembly.
  21. REMOVE SENSOR WIRE
    1. Disconnect the 4 connectors.
      GTY809296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps.
    3. Using an 8 mm socket wrench, remove the bolt and sensor wire from the water inlet with thermostat sub-assembly.
  22. REMOVE NO. 6 ENGINE WIRE
    1. Disconnect the 4 connectors.
      GTY809304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.
    3. Remove the 2 nuts and No. 6 engine wire from the wire harness clamp bracket.
  23. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  24. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 4

  25. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 5

  26. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 6

  27. REMOVE PORT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  28. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 2

  29. REMOVE DIRECT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  30. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 4

  31. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 1

  32. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick.
    2. Using an 8 mm socket wrench, remove the bolt and engine oil level dipstick guide from the cylinder head sub-assembly.
      GTY809939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the engine oil level dipstick guide.
      GTY809941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  34. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
    1. Remove the 4 bolts, engine water pump assembly (water inlet housing) and gasket from the cylinder block sub-assembly.
      GTY756773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

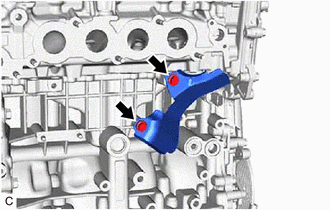

    1. Remove the 2 bolts and No. 3 exhaust manifold heat insulator from the cylinder block sub-assembly.
      GTY892763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 1

  37. REMOVE VACUUM SURGE TANK
    1. Remove the bolt and vacuum surge tank from the vacuum surge tank bracket.
      GTY809302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE VACUUM SURGE TANK BRACKET

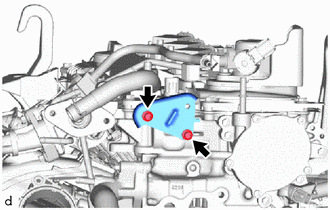

    1. Using an 8 mm socket wrench, remove the 2 bolts and vacuum surge tank bracket from the camshaft housing sub-assembly.
      GTY835312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 2 VENTILATION HOSE

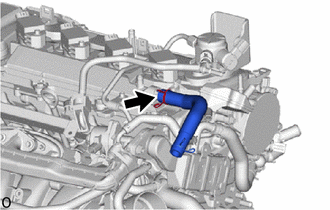

    1. Slide the clip and remove the No. 2 ventilation hose from the cylinder head cover sub-assembly.
      GTY833234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Using an 8 mm socket wrench, remove the 2 bolts and wire harness clamp bracket from the No. 1 ventilation case.
      GTY772063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

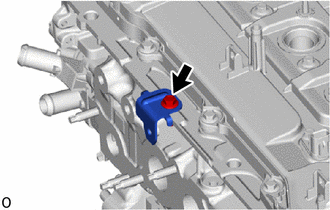

    2. Using an 8 mm socket wrench, remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY802408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE STUD BOLT

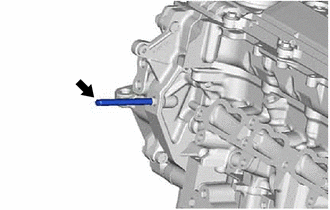

    1. Using an E8 "TORX" socket wrench, remove the stud bolt from the timing chain cover assembly.
      GTY1106744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
