Removal [06/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the purge valve (purge VSV) connector.

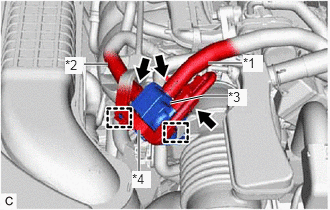

      GTY778037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose
      *3 Purge Valve (Purge VSV)
      *4 Engine Wire
    2. Disengage the wire harness clamp and disconnect the engine wire.
    3. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    4. Slide the clip and disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).
    5. Disengage the guide and remove the purge valve (purge VSV) from the air cleaner cap with air cleaner hose.
