Installation [12/2015 - ]: Procedure

1. Remove SST from the transfer.
   • SST: 09325-20010
2. Install the propeller with center bearing shaft assembly.
   NOTE:

   • Be careful not to damage the oil seal.
   • Be careful not to damage the universal joint boot when installing the propeller shaft.
3. Align the matchmarks on the rear propeller shaft and electromagnetic control coupling assembly and install the 4 nuts and 4 washers temporarily.
   NOTE:

   Do not allow grease to adhere to be bolts or washers.

4. Temporarily install the propeller with center bearing shaft assembly with the 4 bolts, 2 No. 1 center support bearing washers and 2 No. 2 center support bearing washers.
   NOTE:

   • Reuse the original washers. If different washers are used, it will be necessary to adjust the installation angle later.
   • Do not allow grease to adhere to the bolts or washers.
5. Fully tighten the 4 nuts.

   Torque: 37 N*m (379 kgf*cm, 27 ft.*lbf)

1. Remove the piece of cloth or equivalent from the universal joint.
2. Depress the brake pedal and hold it.

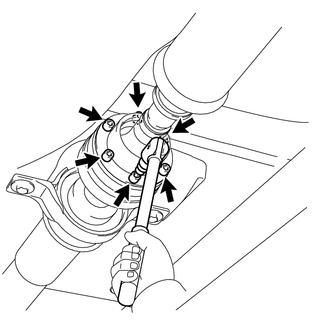

3. Using a hexagon wrench (6 mm), tighten the 6 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

4. With the vehicle unloaded, adjust the dimension between the rear side of the cover and shaft as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Length A

   57.5 to 58.5 mm (2.264 to 2.303 in.)

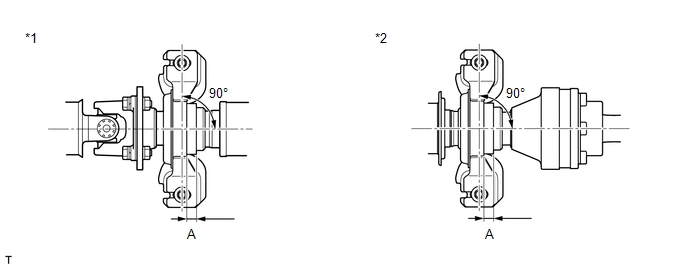

5. With the vehicle unloaded, adjust the front and rear dimensions between the edge surface of the center support bearing and the edge surface of the cushion respectively as shown in the illustration, and then tighten the bolts.

   Length A

   11.5 to 13.5 mm (0.453 to 0.532 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	No. 1 Center Support Bearing Assembly
   *2	No. 2 Center Support Bearing Assembly

6. Check that the center line of the bracket is at a right angle to the shaft axial direction.
7. Fully tighten the 4 bolts.

   Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

1. If any vibration or noise occurs, perform joint angle check as follows and replace the No. 2 center support bearing washer with a proper one.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearings.
   2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.
      NOTE:

      Measure the joint angle while the vehicle is lifted using a 4 pillar lift or while working in a pit.

   3. Remove the differential protector (Refer to PROCEDURE - Step 5 ).

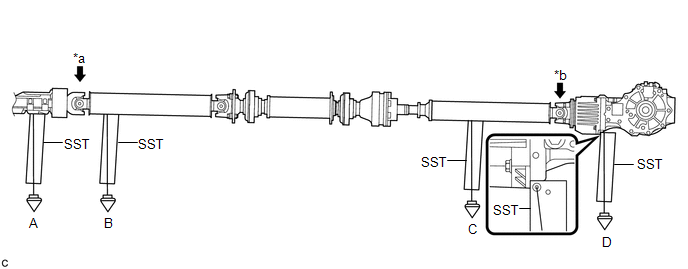

   4. Using SST, measure the propeller shaft installation angle (A) and intermediate shaft installation angle (B) as shown in the following illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a

      No. 1 joint angle

      *b

      No. 4 joint angle

      • SST: 09370-50010

      No. 1 joint angle

      (A) - (B) = -1.77° to 0.23°

   5. Using SST, measure the rear propeller shaft installation angle (C) and rear differential installation angle (D) as shown in the preceding illustration.
      • SST: 09370-50010

      No. 4 joint angle

      (C) - (D) = 1.80° to 3.80°

   6. If the calculated amount is not within the specification, adjust it with the No. 2 center support bearing washer.
      NOTE:

      • Make sure to use a washer of the same thickness on both right and left sides.
      • Do not use 2 or more washers on a bolt.

        Parts No.	Thickness mm (in.)
        90201-10095	3.2 (0.126)
        90201-10081	4.5 (0.177)
        90201-10083	6.5 (0.256)
        90201-10084	9.0 (0.354)
        90201-10085	11.0 (0.433)
        90201-10086	13.5 (0.531)
        90201-10134	15.5 (0.610)
        90201-10135	17.5 (0.689)

   7. Install the differential protector.

      Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)
