Removal [08/2016 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [08/2016 - ]

  10. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20

  11. REMOVE BATTERY

    Refer to PROCEDURE - Step 19

  12. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  13. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 21

  14. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  15. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  16. DISCONNECT AIR TUBE

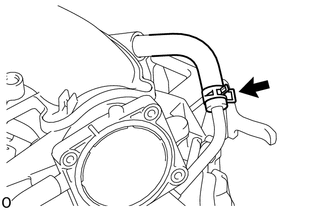

    1. Slide the clip and disconnect the air tube from the vacuum pump assembly.
      GTY693404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. SEPARATE ENGINE ROOM MAIN WIRE

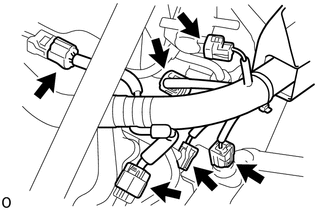

    1. Disconnect the 6 connectors.
      GTY693425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
      GTY693426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 2 connectors.
      GTY693427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and separate the engine room main wire.
  18. REMOVE VACUUM PUMP ASSEMBLY

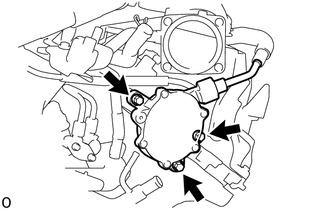

    1. Remove the 3 bolts and vacuum pump assembly from the engine assembly.
      GTY693429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the vacuum pump assembly.
      GTY637333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
