Removal [12/2015 - ]: Procedure

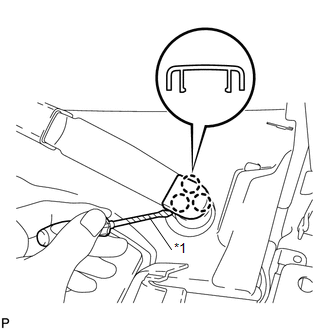

1. Using a screwdriver with its tip wrapped in protective tape, disengage the 3 claws and remove the 2 front wiper arm head caps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protective Tape

1. Remove the nut and the front wiper arm and blade assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

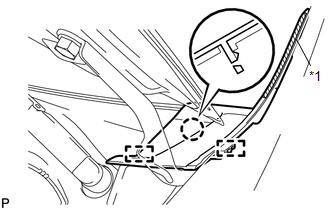

1. Disengage the claw and 2 guides, peel off the double-sided tape, and remove the front fender to cowl side seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Double-sided Tape

HINT:

Use the same procedure as for the LH side.

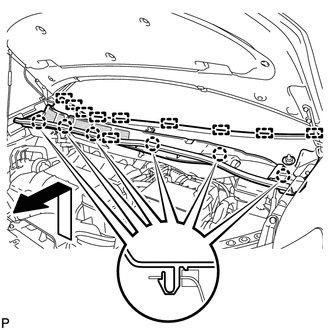

1. Disengage the 6 claws and 10 guides, and pull out the cowl top ventilator louver sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

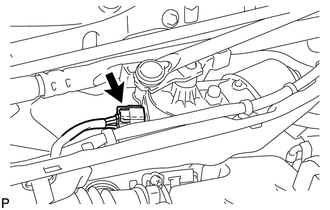

1. Disconnect the windshield wiper motor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

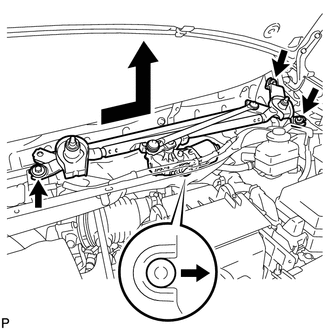

2. Remove the 3 bolts and the windshield wiper motor and link assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver with its tip wrapped in protective tape, disengage the windshield wiper link rod from the crank arm pivot of the front wiper motor assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protective Tape

2. Using a T30 "TORX" socket wrench, remove the 2 bolts and the windshield wiper motor assembly from the windshield wiper link assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
