Removal [12/2015 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

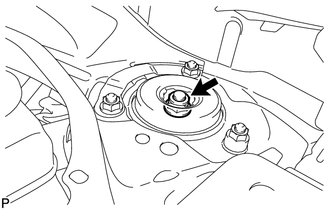

1. Loosen the front suspension support nut of the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not remove the front suspension support nut.
   • Loosen the front suspension support nut only when the front shock absorber with coil spring needs to be disassembled.

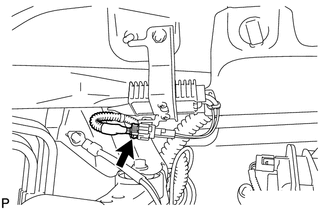

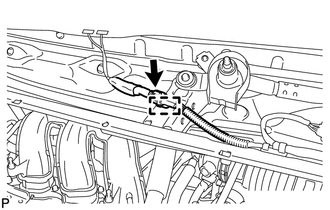

1. Disconnect the fuel pump resistor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

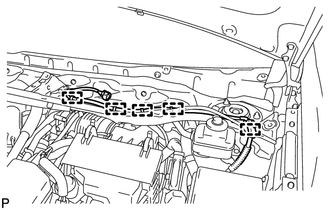

2. Disengage the 5 clamps and separate the engine room main wire from the cowl panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. w/ Windshield Deicer System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage the clamp and disconnect the connector.

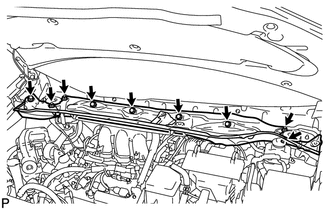

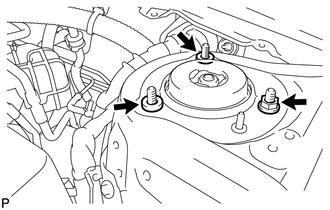

4. Remove the 5 bolts, 4 nuts and cowl panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

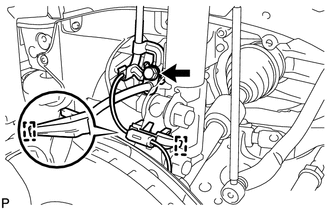

1. Remove the bolt and resin clamp, and separate the front speed sensor and front flexible hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.

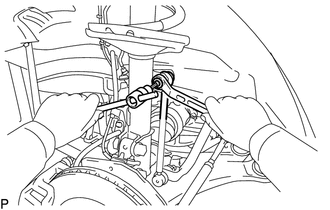

1. Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench 6 mm to hold the stud bolt.

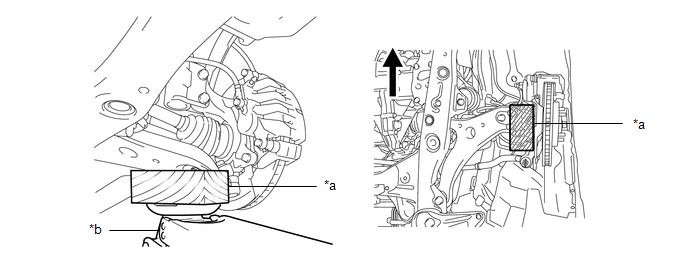

1. Support the front axle using a jack and wooden block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Wooden Block	*b	Jack
   	Front of the Vehicle	-	-

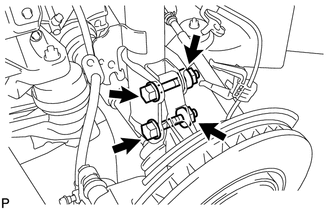

2. Remove the 2 nuts and 2 bolts and separate the front shock absorber with coil spring (lower side) from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When removing the nuts, keep the bolts from rotating.

3. Remove the nut and 2 spacers on the front shock absorber with coil spring (upper side).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Make sure that the front speed sensor is completely separated from the front shock absorber with coil spring.

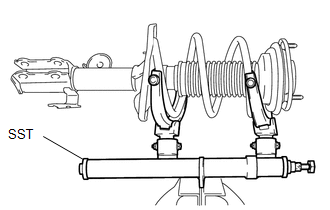

1. Secure SST in a vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09727-00050
   • SST: 09727-30021
     1. 09727-00010
     2. 09727-00031
2. Attach the arm of SST to the diameter of the front coil spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Correct
   *b	Incorrect

   WARNING:

   • Make sure that the front coil spring is installed so that the distance between the upper and lower hooks of SST is at the maximum.
   • Make sure that the claws of the hooks are securely attached.
3. Using SST, compress the front coil spring.
   WARNING:

   • If the front coil spring bends during the compression, immediately stop the compression and reinstall SST.
   • Do not compress the spring until the coil springs contact each other.
   • Do not use an impact wrench. It will damage SST.
4. Confirm that the front coil spring becomes free and remove the front suspension support nut.
   WARNING:

   Do not remove the nut when the front coil spring is not free.

5. Remove the front suspension support sub-assembly.
