Removal [12/2015 - ]: Procedure

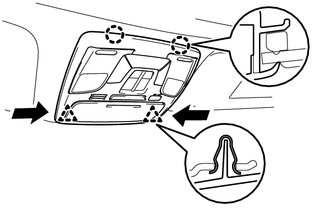

1. Disengage the 2 clips and 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Pull down on the sides of the console box, in the locations indicated by the arrows in the illustration, to disengage the clips.
   • Do not pull down on the center portion of the console box. Pulling down on the center portion may cause the console box assembly to distort or crack.
2. Disconnect the connectors to remove the roof console box assembly.

(Refer to REMOVAL [12/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ] )

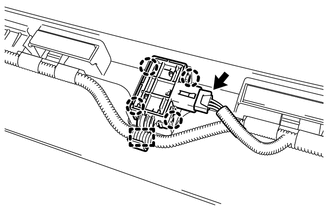

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 4 claws and guide to remove the slide roof motor switch.
