Removal [08/2015 - 08/2018]: Procedure

  1. REMOVE REAR WHEEL
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY (for 3UR-FE)

    Refer to PROCEDURE - Step 1

  3. REMOVE TAIL EXHAUST PIPE ASSEMBLY (for 3UR-FBE)

    Refer to PROCEDURE - Step 1

  4. REMOVE PROPELLER SHAFT ASSEMBLY (for 2WD)

    (Refer to REMOVAL [08/2015 - ] )

  5. REMOVE PROPELLER SHAFT HEAT INSULATOR (for 4WD)

    Refer to PROCEDURE - Step 1

  6. REMOVE TRANSFER HEAT INSULATOR (for 4WD)

    Refer to PROCEDURE - Step 2

  7. REMOVE PROPELLER SHAFT ASSEMBLY (for 4WD)

    Refer to PROCEDURE - Step 3

  8. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY (w/ Air Suspension)

    Refer to PROCEDURE - Step 1

  9. REMOVE REAR STABILIZER BAR

    (Refer to REMOVAL [08/2015 - 08/2018] )

  10. REMOVE REAR SHOCK ABSORBER ASSEMBLY (w/o Air Suspension)

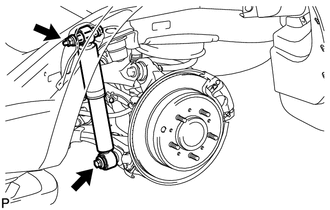

    1. Remove the 2 bolts and nut and remove the rear shock absorber.
      GTY309161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SHOCK ABSORBER ASSEMBLY (w/ Air Suspension)
    GTY310030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the AVS connector.
    2. Remove the 2 bolts and nut and remove the rear shock absorber.
      GTY309161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
