Installation [08/2015 - 08/2019]: Procedure

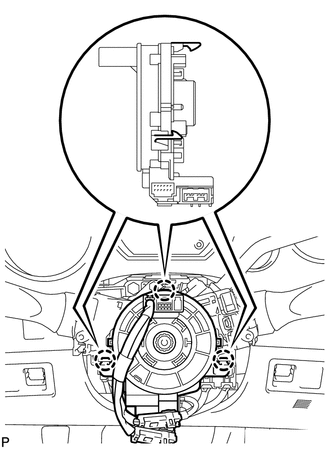

1. Attach the 3 claws and install the spiral cable with steering sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When replacing the spiral cable with a new one, brake off and remove the lock pin before installing the steering wheel.

2. Connect the connectors to the spiral cable with steering sensor.
   NOTE:

   When handling the airbag connector, take care not to damage the airbag wire harness.

Refer to:

PROCEDURE - Step 12 [08/2015 - 08/2017]

PROCEDURE - Step 12 [08/2017 - 08/2019]

Refer to:

PROCEDURE - Step 13 [08/2015 - 08/2017]

PROCEDURE - Step 13 [08/2017 - 08/2019]

HINT:

Perform the following procedure only when reusing the spiral cable.

1. Check that the ignition switch is off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check that the battery negative (-) terminal is disconnected.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

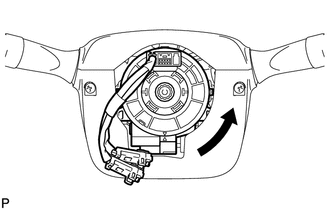

3. Rotate the spiral cable with steering sensor counterclockwise slowly by hand until it feels firm.
   NOTE:

   Do not turn the spiral cable with steering sensor by the airbag wire harness.

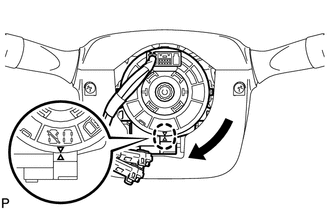

4. Rotate the spiral cable with steering sensor clockwise approximately 2.5 turns to align the marks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not turn the spiral cable with spiral sensor by the airbag wire harness.

   HINT:

   The spiral cable with steering sensor will rotate approximately 2.5 turns to both the left and right from the center.

Refer to:

PROCEDURE - Step 7 [08/2015 - 08/2017]

PROCEDURE - Step 5 [08/2017 - ]

See step  1

See step  2

See step  3

Torque: 5.4 N.m (55 kgf/cm, 48 ft.lbf)

See step  5

1. Check the SRS warning light. Refer to:

   DIAGNOSIS SYSTEM [08/2015 - 08/2017]

   OPERATION CHECK [08/2017 - 08/2019] .
