Installation [08/2015 - 08/2017]: Procedure

  1. INSTALL STEERING COLUMN ASSEMBLY
    1. Install the steering column with the bolt and 2 nuts.
      GTY607222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 16 ft.lbf)

    2. Connect the connectors and wire harness clamps.
  2. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

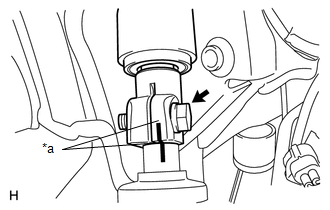

    1. Align the matchmarks on the No. 2 steering intermediate shaft and power steering gear.
      GTY568928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  3. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft and No. 2 steering intermediate shaft.
      GTY561023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

    3. Align the matchmarks on the steering column and steering intermediate shaft.
      GTY577829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    4. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

    5. Install the 3 bolts and nut.
      GTY575530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  4. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY
    1. Install the air duct with the bolt.
      GTY611357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 54

  7. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 56

  9. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 46

  10. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab)

    Refer to PROCEDURE - Step 48

  11. INSTALL COMBINATION SWITCH WITH SPIRAL CABLE
    1. Using pliers, grip the claws of the clamp and install the combination switch with spiral cable to the steering column assembly with the clamp.
      GTY554400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 6 connectors to the combination switch with spiral cable.
      GTY581582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL UPPER STEERING COLUMN COVER
    1. Attach the claw to install the upper steering column cover.
      GTY611116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 4 clips.
  13. INSTALL LOWER STEERING COLUMN COVER
    1. Attach the 2 claws to install the lower steering column cover.
      GTY593341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

      Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)

  14. ADJUST SPIRAL CABLE

    Refer to PROCEDURE - Step 4

  15. INSTALL STEERING WHEEL ASSEMBLY

    See step  7

  16. INSPECT STEERING WHEEL CENTER POINT
  17. INSTALL STEERING PAD

    Refer to PROCEDURE - Step 1

  18. INSTALL LOWER NO. 3 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 2

  19. INSTALL LOWER NO. 2 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 3

  20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).

  21. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2017] )
