Installation [08/2017 - ]: Procedure

INSTALL STEERING WHEEL PAD ATTACHING SCREW
1. Set the 2 steering wheel pad attaching screws.
INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the cruise control main switch with the 2 screws.
2. Install the wire harness.
INSTALL STEERING PAD SWITCH ASSEMBLY
1. Attach the 6 guide pins and 2 claws to install the steering pad switch assembly with the 4 screws.
ADJUST SPIRAL CABLE
Refer to

PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to

PROCEDURE - Step 4 [08/2019 - ]

INSTALL STEERING WHEEL ASSEMBLY

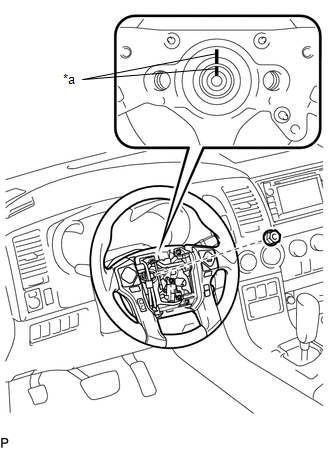

Align the matchmarks on the steering wheel and steering main shaft.

GTY761311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a

Matchmark

Install the steering wheel set nut.
Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

INSTALL STEERING PAD
Refer to

PROCEDURE - Step 1 [08/2015 - 08/2019] , or refer to

PROCEDURE - Step 1 [08/2019 - ]
INSTALL LOWER NO. 3 STEERING WHEEL COVER
Refer to

PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to

PROCEDURE - Step 2 [08/2019 - ]
INSTALL LOWER NO. 2 STEERING WHEEL COVER
Refer to

PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to

PROCEDURE - Step 3 [08/2019 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to

INITIALIZATION [08/2017 - 08/2018] , or refer to

INITIALIZATION [08/2018 - 08/2019] , or refer to

INITIALIZATION [08/2019 - ] ).
INSPECT STEERING PAD
CHECK SRS WARNING LIGHT
Refer to

OPERATION CHECK [08/2017 - 08/2019] , or refer to

OPERATION CHECK [08/2019 - ] )
