Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE STAND

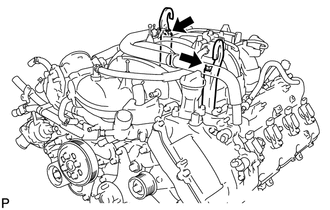

    1. Install the 2 engine hangers with the 2 bolts as shown in the illustration.
      GTY566896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      HINT:

      Item Part No.
      Engine hanger 12281-38150
      Bolt 90119-A0166
    2. Attach an engine sling device and hang the engine with a chain block.
    3. Remove the bolts and engine assembly from the engine stand.
  2. INSTALL ENGINE ASSEMBLY
    1. Slowly lower the engine assembly into the engine compartment.
      NOTE:

      Make sure that the engine is clear of all wiring and hoses.

    2. Attach the engine mounting insulators to the vehicle.

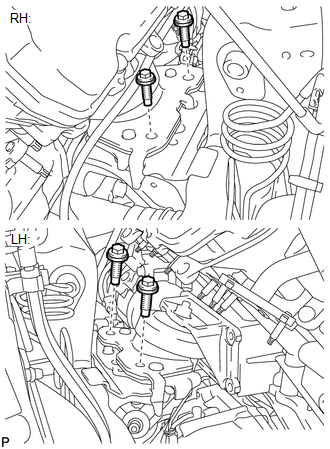

    3. Install the 4 engine mounting insulator bolts.
      GTY583335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 79 N.m (806 kgf/cm, 58 ft.lbf)

    4. Remove the 2 bolts and 2 engine hangers.
  3. INSTALL OIL COOLER TUBE
    1. Install the oil cooler tube with the bolt.

      Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

  4. INSTALL NO. 1 WATER BY-PASS PIPE

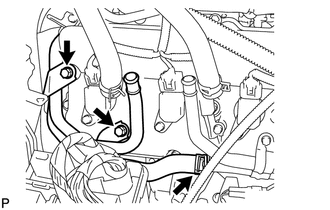

    1. Connect the hose and install the water by-pass pipe with the 2 bolts.
      GTY611675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

  5. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

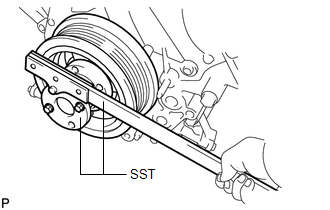

    1. Using SST, hold the crankshaft.
      GTY122206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021

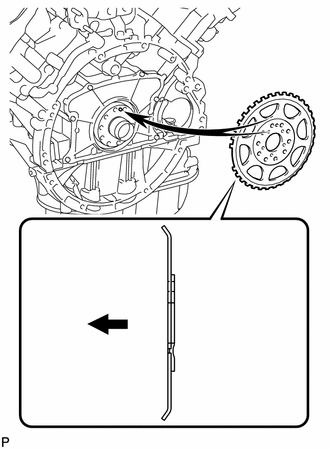

    2. Install the crankshaft angle sensor rotor.
      GTY608181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engine Side

      HINT:

      • Align the pin hole of the crankshaft angle sensor rotor with the pin of the crankshaft.
      • As the crankshaft angle sensor rotor is not reversible, be sure to install it so that it is facing in the direction shown in the illustration.

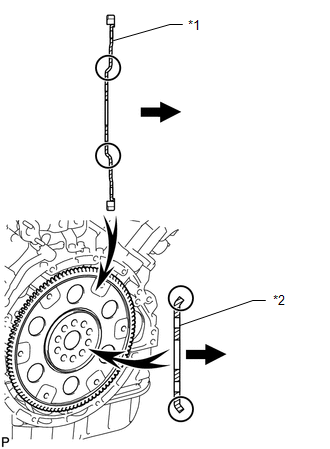

    3. Install the drive plate and rear drive plate spacer onto the crankshaft.
      GTY547358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Plate
      *2 Rear Drive Plate Spacer
      Automatic Transmission Side

      HINT:

      As the rear drive plate spacer and the drive plate are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.

    4. Install the drive plate and ring gear and bolts.

      HINT:

      The bolts are tightened in 2 progressive steps.

      1. Clean the bolts and bolt holes.
      2. Apply adhesive to 2 or 3 threads of the 8 bolts.
        GTY549378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Adhesive

        Adhesive

        Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      3. Step 1:

        Install and uniformly tighten 10 new bolts in the sequence shown in the illustration.

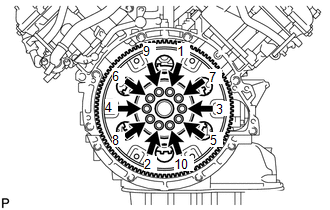

        Fig 1: Drive Plate And Ring Gear Sub-Assembly Tightening Sequence
        GTY558470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

        NOTE:
        • Do not reuse the drive plate installation bolts.
        • Do not strike or damage the drive plate installation bolts. Be sure to handle them carefully.
      4. Mark the top of each drive plate installation bolt with paint.
      5. Step 2:

        Tighten the drive plate installation bolts 90° as shown in the illustration.

      6. Check that the painted marks are now at a 90° angle to the top.
        NOTE:

        Do not start the engine for at least an hour after installing the drive plate.

  6. INSTALL EXHAUST MANIFOLD
    1. Install the exhaust manifold. Refer to INSTALLATION [08/2015 - 08/2018] .
  7. INSTALL GENERATOR ASSEMBLY
    1. Install the generator assembly. Refer to INSTALLATION [08/2015 - 08/2018] .
  8. INSTALL COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 29

  9. CONNECT NO. 2 AIR INJECTION SYSTEM HOSE

    Refer to PROCEDURE - Step 5

  10. CONNECT NO. 3 AIR INJECTION SYSTEM HOSE

    Refer to PROCEDURE - Step 6

  11. INSTALL ENGINE WIRE

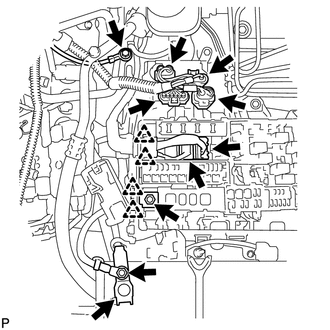

    1. Connect the 2 connectors and 2 clips to the engine room junction block.
      GTY593820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the engine wire with the nut. Then connect the 2 clips.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    3. Connect the 4 air injection control driver connectors.
    4. Install the ground wire with the bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    5. Connect the cable to the positive (+) battery terminal.
    6. Install the wire to the positive (+) battery cable with the nut.

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

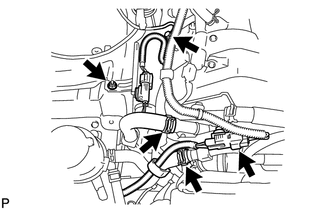

    7. Connect the 2 air injection system hoses.
      GTY609878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the ground wire with the bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    9. Connect the 2 air pump connectors and install the connector bracket with the nut.

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

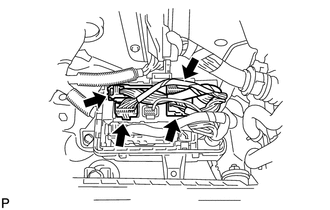

    10. Connect the 4 connectors to the connector holder block.
      GTY603891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the heater hoses.
  12. INSTALL ECM

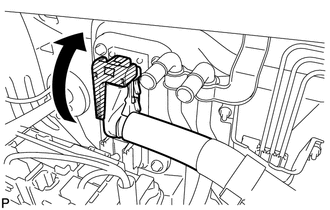

    1. Connect the ECM connector and clamp.
      GTY588034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Refer to the following procedures to connect the ECM connector. Refer to PROCEDURE - Step 2 .

  13. CONNECT FUEL MAIN AND RETURN HOSE
    1. Connect the fuel main and return hoses. Refer to PRECAUTION [08/2015 - 08/2018] .
      GTY570087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel pipe clamp.
  14. CONNECT FUEL VAPOR FEED HOSE ASSEMBLY

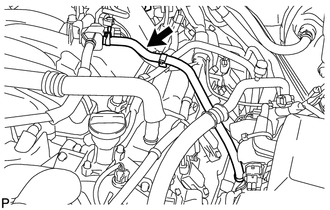

    1. Connect the purge line hose.
      GTY588005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. CONNECT VACUUM HOSE ASSEMBLY

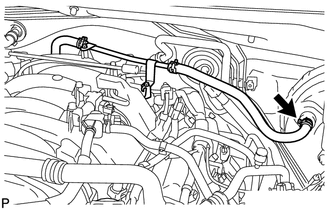

    1. Connect the union to check valve hose.
      GTY588013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. CONNECT OUTLET HEATER WATER HOSE C

    Refer to PROCEDURE - Step 35

  17. CONNECT INLET HEATER WATER HOSE C

    Refer to PROCEDURE - Step 36

  18. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 13

  19. INSTALL AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 14

  20. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the transmission assembly. Refer to INSTALLATION [08/2015 - ] .
  21. INSTALL RADIATOR ASSEMBLY
    1. Install the radiator assembly. Refer to INSTALLATION [08/2015 - 08/2018] .
  22. ADD ENGINE OIL

    Refer to PROCEDURE - Step 9

  23. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] .

    Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  25. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 10

  26. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  27. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 13

  28. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 11

  29. INSTALL COWL TOP OUTER PANEL SUB-ASSEMBLY
    1. Install the outer panel with the 7 bolts.
      GTY611345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    2. Connect the 2 washer hoses.
  30. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Install the windshield wiper motor. Refer to INSTALLATION [08/2015 - ] .
  31. INSTALL HOOD SUB-ASSEMBLY

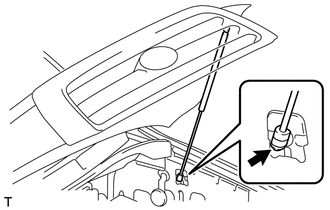

    1. Install the hood with the 4 bolts.
      GTY581625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

    2. Attach the lower part of the 2 hood supports to the hood support bolt ball joints.
      NOTE:

      Install the hood support while supporting the hood by hand.

    3. Attach the hood support clips.
      NOTE:

      Check that the hood support is engaged in the ball joint and that it cannot be pulled out.

  32. ADJUST HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  33. ALCOHOL DENSITY LEARNING INITIALIZATION

    Refer to PROCEDURE - Step 5

  34. ALCOHOL DENSITY LEARNING

    Refer to PROCEDURE - Step 6

  35. INSPECT IGNITION TIMING

    See step  8

  36. INSPECT ENGINE IDLE SPEED

    See step  9

  37. INSPECT CO/HC

    See step  11

  38. INSPECT FOR ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  39. INSPECT FOR ENGINE COOLANT LEVEL

    Refer to PROCEDURE - Step 2

  40. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [08/2015 - 08/2017] , or refer to OPERATION CHECK [08/2017 - 08/2019] )
