Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

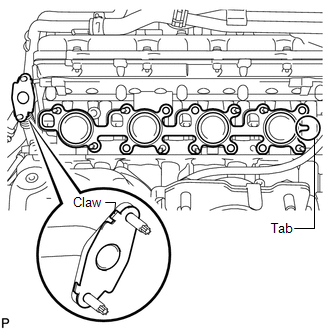

    1. Install a new gasket to the cylinder head and a new gasket to the No. 2 air tube.
      GTY552197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Install the exhaust manifold gasket with the gasket tab facing toward the front of the engine.
      • Install the air tube gasket with the gasket's claws facing the tube side.

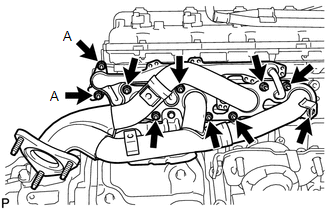

    2. Temporarily install the exhaust manifold with the 2 nuts labeled A and 8 new nuts.
      GTY539296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Uniformly tighten the nuts that are not labeled A, and then tighten the 2 nuts labeled A.

      for nut A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      except nut A

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  2. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 1 exhaust manifold heat insulator with the 3 bolts.
      GTY594138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH

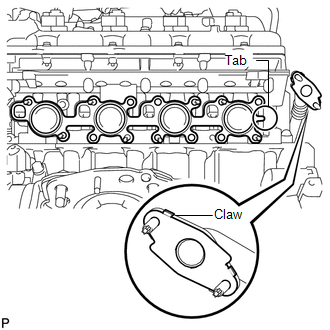

    1. Install a new gasket to the cylinder head and a new gasket to the No. 3 air tube.
      GTY539461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Install the exhaust manifold gasket with the gasket tab facing toward the rear of the engine.
      • Install the air tube gasket with the gasket's claws facing the tube side.

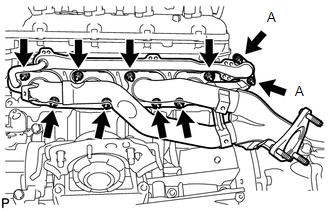

    2. Temporarily install the exhaust manifold with the 2 nuts labeled A and 8 new nuts.
      GTY610356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Uniformly tighten the nuts that are not labeled A, and then tighten the 2 nuts labeled A.

      for nut A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      except nut A

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  4. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator with the 3 bolts.
      GTY604668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  5. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY

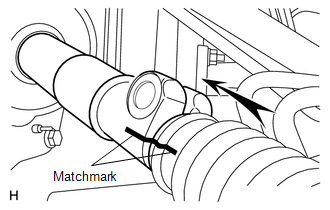

    1. Align the matchmarks and insert the No. 2 steering intermediate shaft sub-assembly into the intermediate shaft.
      GTY538961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

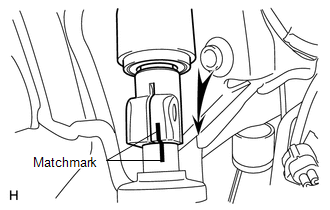

    2. Align the matchmarks and insert the No. 2 steering intermediate shaft sub-assembly into the power steering gear.
      GTY545843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 bolts.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  6. INSTALL FRONT NO. 4 FLOOR HEAT INSULATOR
    GTY611241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the front No. 4 floor heat insulator with the 4 bolts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  7. INSTALL FRONT NO. 3 FLOOR HEAT INSULATOR
    GTY611667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the front No. 3 floor heat insulator with the 4 bolts.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  8. INSTALL FRONT EXHAUST PIPE ASSEMBLY
    GTY550612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new gasket and the front exhaust pipe assembly to the exhaust manifold RH with 3 new nuts.

      Torque: 54 N.m (554 kgf/cm, 40 ft.lbf)

    2. Install a new gasket and the front exhaust pipe assembly to the center exhaust pipe assembly with the 2 bolts.

      Torque: 48 N.m (489 kgf/cm, 35 ft.lbf)

    3. Connect the air fuel ratio sensor connector.
    4. Connect the heated oxygen sensor connector and 2 clamps.
  9. INSTALL FRONT NO. 2 EXHAUST PIPE ASSEMBLY
    GTY599853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new gasket and the front No. 2 exhaust pipe sub-assembly to the exhaust manifold LH with 3 new nuts.

      Torque: 54 N.m (554 kgf/cm, 40 ft.lbf)

    2. Connect the front No. 3 exhaust pipe sub-assembly to the exhaust pipe support.
      GTY550611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install 2 new gaskets and the front No. 3 exhaust pipe sub-assembly with the 4 bolts and 2 new nuts.

      Torque: 48 N.m (489 kgf/cm, 35 ft.lbf)

    4. Connect the air fuel ratio sensor connector.
    5. Connect the heated oxygen sensor connector.
  10. INSTALL FRONT PROPELLER SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  12. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 7

  13. INSPECT FOR EXHAUST GAS LEAK

    If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

    HINT:

    If an exhaust gas leak has been repaired, perform an inspection following the repair (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).

  14. INSTALL FRONT FENDER APRON SEAL REAR LH
    1. Install the fender apron seal with the 5 clips.
  15. INSTALL FRONT FENDER APRON SEAL LH
    1. Install the fender apron seal with the 6 clips.
  16. INSTALL FRONT FENDER APRON SEAL REAR RH
    1. Install the fender apron seal with the 5 clips.
  17. INSTALL FRONT FENDER APRON SEAL RH
    1. Install the fender apron seal with the 6 clips.
  18. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12
