Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WATER INLET SUB-ASSEMBLY WITH THERMOSTAT
    1. Install a new gasket and the water inlet with thermostat with the 3 nuts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

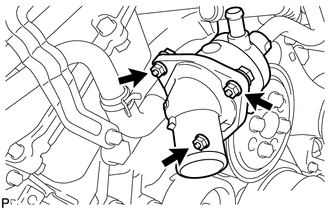

      GTY610766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT NO. 5 WATER BY-PASS HOSE

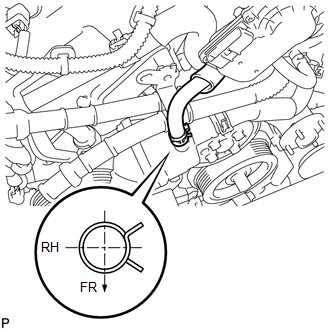

    GTY577240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the No. 5 water by-pass hose.

      HINT:

      Install the hose so that the direction of the hose clamp is as indicated in the illustration.

  3. CONNECT OUTLET RADIATOR HOSE

    See step  9

  4. INSTALL AIR PIPE SUB-ASSEMBLY
    1. Install the air pipe with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

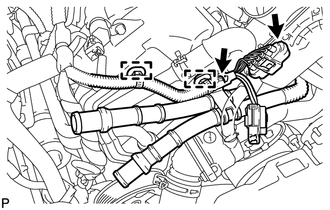

      GTY611654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector and install the wire harness with the 2 clamps.
  5. CONNECT NO. 2 AIR INJECTION SYSTEM HOSE

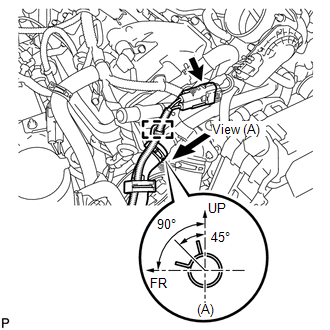

    GTY542723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the No. 2 air injection hose.
    2. Attach the wire harness clamp.
    3. Connect the air pump connector.
  6. CONNECT NO. 3 AIR INJECTION SYSTEM HOSE

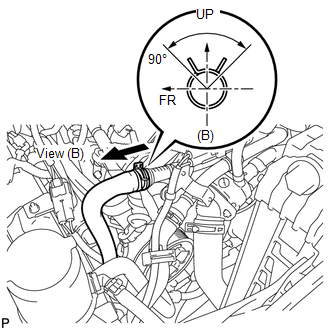

    GTY565866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the No. 3 air injection hose.
  7. ADD ENGINE COOLANT

    See step  3

  8. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  9. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  10. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12
