Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] , or refer to PRECAUTION [08/2017 - 08/2019] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] )

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE INLET RADIATOR HOSE

    Refer to PROCEDURE - Step 5

  7. DISCONNECT OUTLET RADIATOR HOSE

    Refer to PROCEDURE - Step 6

  8. REMOVE FAN SHROUD

    Refer to PROCEDURE - Step 7

  9. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 2

  10. DISCONNECT VANE PUMP ASSEMBLY
    GTY550631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

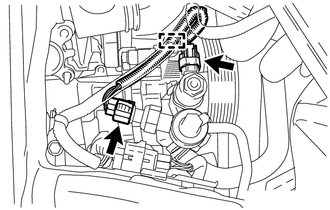

    1. Disconnect the clamp and 2 power steering connectors.
    2. Remove the 2 bolts and disconnect the vane pump.

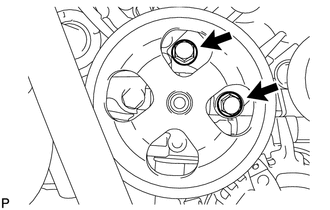

      GTY610877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE GENERATOR ASSEMBLY
    1. Disconnect the generator connector.

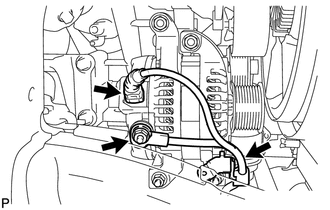

      GTY574536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the terminal cap and nut, and disconnect the generator wire.
    3. Remove the bolt and disconnect the wire harness bracket from the generator.
    4. Remove the 3 bolts, nut and generator.

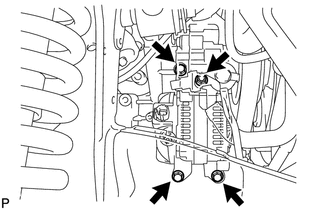

      GTY574539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
