Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    (Refer to REPLACEMENT [08/2015 - 08/2018] )

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

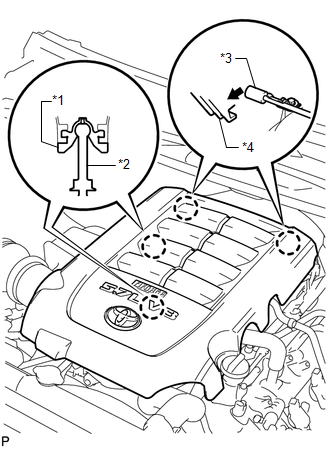

    1. Raise the front of the V-bank cover sub-assembly to detach the 2 pins. Then remove the 2 V-bank cover hooks from the No. 1 V-bank cover bracket, and remove the V-bank cover sub-assembly.
      GTY593786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 V-bank Cover Grommet
      *2 Pin
      *3 No. 1 V-bank Cover Bracket
      *4 V-bank Cover Hook

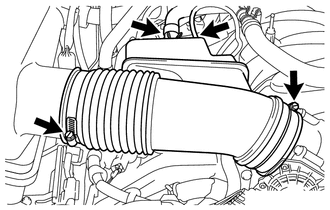

  3. REMOVE AIR CLEANER HOSE ASSEMBLY
    1. Disconnect the vacuum hose from the air cleaner hose assembly.
      GTY562532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clamp and disconnect the ventilation hose from the air cleaner hose assembly.
    3. Loosen the 2 hose clamps.
    4. Remove the air cleaner hose assembly.
  4. DISCONNECT VENTILATION HOSE ASSEMBLY

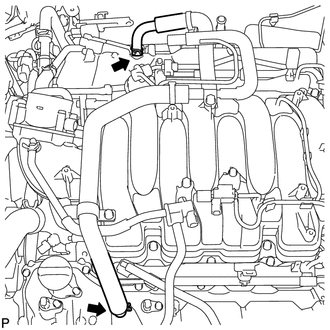

    1. Slide the 2 clamps and disconnect the ventilation hose assembly from the ventilation pipe of the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
      GTY603852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

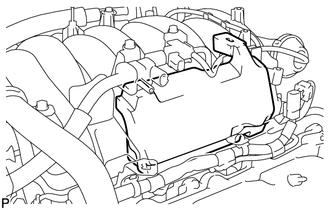

  5. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    1. Remove the No. 1 engine cover sub-assembly.
      GTY604650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

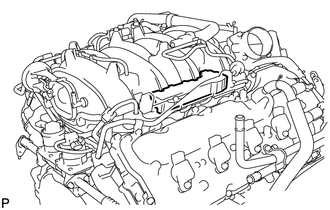

  6. REMOVE NO. 3 ENGINE COVER
    1. Remove the No. 3 engine cover.
      GTY570604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INTAKE MANIFOLD
    1. Disconnect the throttle body connector from the throttle body assembly.

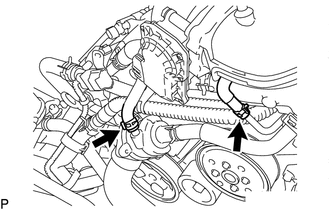

      GTY578750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clamps and disconnect the 2 water by-pass hoses from the inlet water housing and front water by-pass joint.

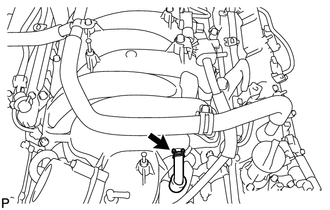

    3. Slide the clamp and disconnect the ventilation hose from the intake manifold.
      GTY604662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

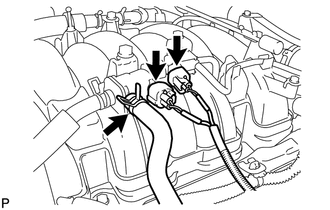

    4. Disconnect the 2 vacuum switching valve connectors.
      GTY570615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

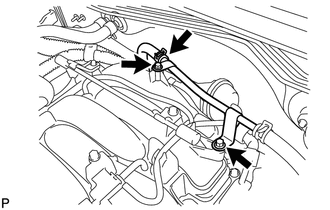

    5. Slide the clamp and disconnect the purge line hose from the purge VSV.
    6. Remove the 2 bolts.
      GTY546201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

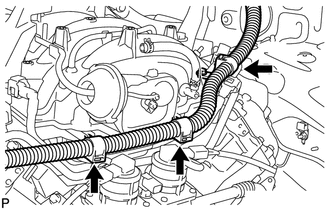

    7. Slide the clamp and disconnect the union to connector tube hose from the No. 1 tube.
    8. Detach the 3 wire harness clamps from the 3 wire harness clamp brackets.
      GTY611186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

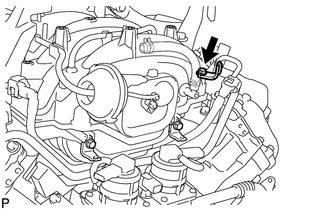

    9. Remove the bolt and wire harness clamp bracket from the intake manifold.
      GTY546165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

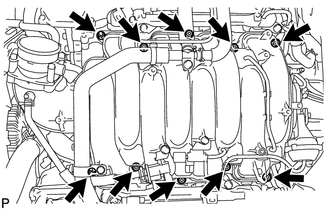

    10. Remove the 2 nuts, 8 bolts, intake manifold and 2 gaskets.
      GTY599182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

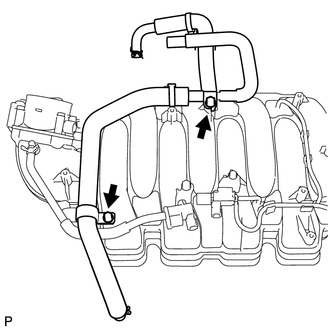

  8. REMOVE VENTILATION HOSE ASSEMBLY
    1. Remove the 2 bolts and ventilation hose assembly from the intake manifold.
      GTY586221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

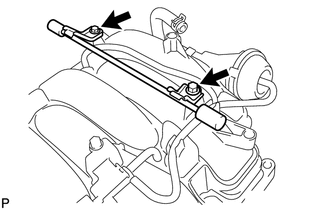

  9. REMOVE NO. 1 V-BANK COVER BRACKET
    1. Remove the 2 bolts and No. 1 V-bank cover bracket.
      GTY570646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

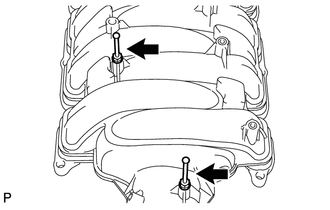

  10. REMOVE V-BANK COVER BOLT
    1. Remove the 2 V-bank cover bolts from the intake manifold.
      GTY586220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

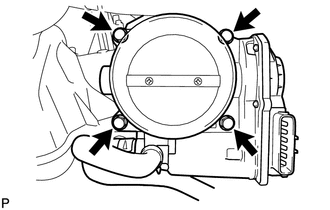

  11. REMOVE THROTTLE BODY ASSEMBLY
    1. Remove the 4 bolts, throttle body assembly and gasket.
      GTY599737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

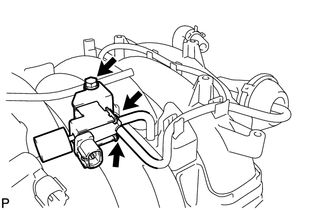

  12. REMOVE VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
    1. Disconnect the 2 vacuum hoses from the vacuum switching valve assembly.
      GTY585155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and vacuum switching valve assembly.

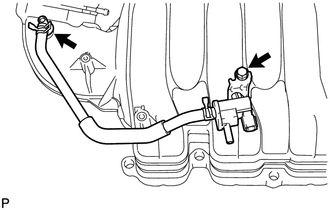

  13. REMOVE PURGE VSV
    1. Slide the clamp and disconnect the purge line hose from the intake manifold.
      GTY602313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and purge VSV.

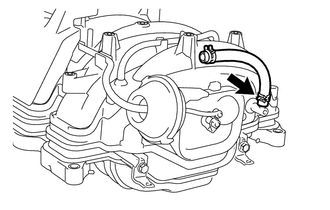

  14. REMOVE UNION TO CONNECTOR TUBE HOSE
    1. Slide the clamp and remove the union to connector tube hose from the intake manifold.
      GTY562539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

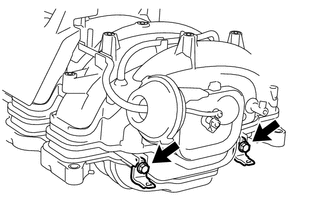

  15. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 2 bolts and 2 wire harness clamp brackets.
      GTY562542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
