Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2

  2. DRAIN ENGINE COOLANT

    See step  2

  3. REMOVE FRONT BUMPER COVER ASSEMBLY
    1. Remove the front bumper cover assembly (Refer to REMOVAL [08/2015 - 08/2017] Refer to REMOVAL [08/2017 - ] ).
  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE INLET RADIATOR HOSE

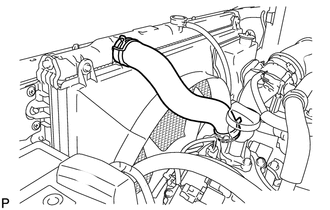

    1. Remove the inlet radiator hose.
      GTY610952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT OUTLET RADIATOR HOSE

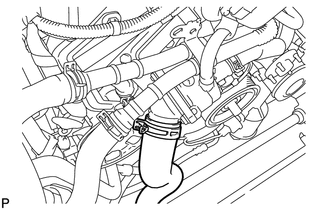

    1. Disconnect the outlet radiator hose from the water inlet housing.
      GTY611063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FAN SHROUD
    1. Loosen the 4 nuts holding the fluid coupling and fan.
      GTY547911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the fan and generator V belt (Refer to PROCEDURE - Step 3 ).

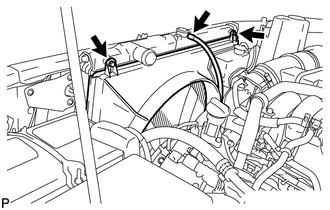

    3. Disconnect the reservoir hose from the upper radiator tank.
      GTY611389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts holding the fan shroud.
    5. Remove the 4 nuts of the fluid coupling fan, and then remove the shroud together with the coupling fan.
      NOTE:

      Be careful not to damage the radiator core.

    6. Remove the fan pulley from the fan bracket.
  8. REMOVE RADIATOR SIDE DEFLECTOR RH
    1. Remove the 6 clips and side deflector.
      GTY561181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RADIATOR SIDE DEFLECTOR LH
    1. Remove the 6 clips and side deflector.
      GTY574991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire harness clamp.
  10. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL (for LH Side)
    1. Remove the 3 clips and remove the No. 1 radiator to support seal.
      GTY611262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL (for RH Side)
    1. Remove the 3 clips and remove the No. 1 radiator to support seal.
      GTY608577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIATOR ASSEMBLY

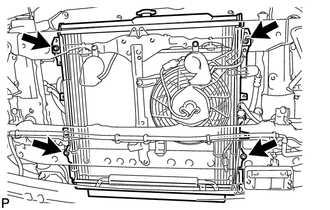

    1. Remove the 4 bolts and radiator.
      GTY587978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE OUTLET RADIATOR HOSE

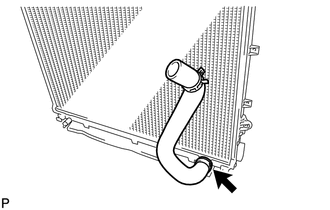

    1. Remove the outlet radiator hose from the radiator.
      GTY187731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
