Removal [08/2015 - 08/2019]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  3. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 28 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 28 [08/2018 - 08/2019]

  5. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

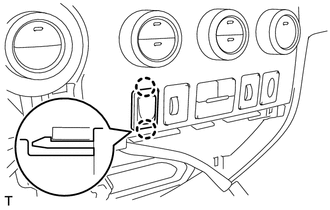

    GTY586922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 claws and remove the stereo jack adapter.
    2. Disconnect the connector.

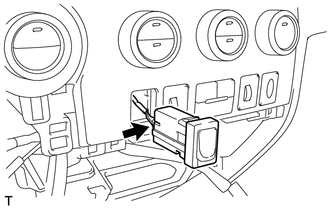

      GTY586921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
