Removal [09/2016 - 05/2019]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 6

  7. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 7

  8. REMOVE DECK TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE REAR SEATBACK HINGE COVER

    Refer to PROCEDURE - Step 4

  12. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  13. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    Refer to PROCEDURE - Step 7

  14. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 8

  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 14

  16. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the rear door opening trim weatherstrip RH.
  17. REMOVE REAR UNDER SIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 31

  18. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 32

  19. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 33

  20. REMOVE ROPE HOOK (w/o Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 34

  21. REMOVE NO. 2 ROPE HOOK (w/o Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 35

  22. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/ Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 36

  23. REMOVE TONNEAU COVER HOOK A (w/ Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 38

  26. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 44

  27. REMOVE NO. 2 HYBRID BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 45

  28. DISCONNECT AC CHARGER INLET CABLE (w/o CABLE EV CHARGER LOCK ASSEMBLY)
    1. Disengage the 3 clamps.

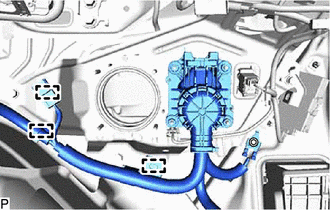

      GTY726086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.

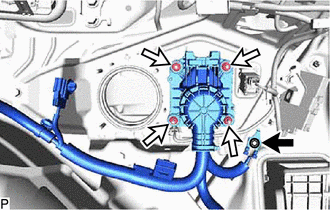

      GTY726887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    3. Remove the 4 nuts and disconnect the AC charger inlet cable.
  29. DISCONNECT AC CHARGER INLET CABLE WITH CABLE EV CHARGER LOCK ASSEMBLY (w/ CABLE EV CHARGER LOCK ASSEMBLY)
    1. Disconnect the connector.

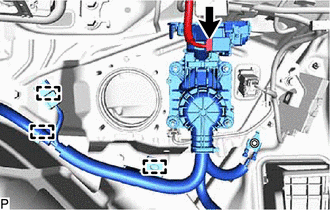

      GTY740595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps.
    3. Remove the bolt.

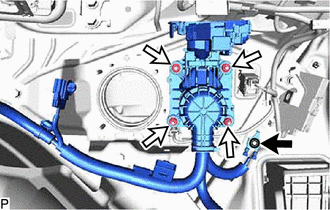

      GTY740529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Remove the 4 nuts and disconnect the AC charger inlet cable with cable EV charger lock assembly.
  30. REMOVE FUEL FILLER OPENING LID LOCK BRACKET
    1. Disconnect the 2 connectors.

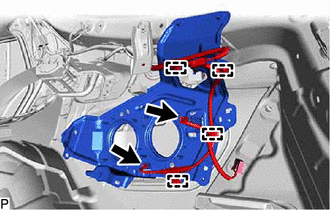

      GTY730470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps.
    3. Remove the 4 bolts.

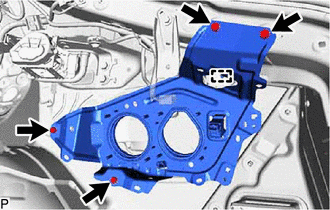

      GTY730468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide.
    5. Disengage the fuel tank drain plug shield to remove the fuel filler opening lid lock bracket.

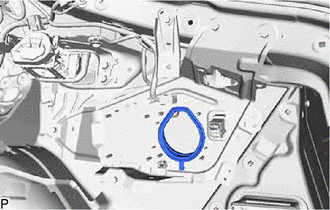

      GTY726084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE CHARGING PORT OPENING LID LOCK RETAINER

    See step  31

  32. REMOVE CHARGE LID LOCK WITH MOTOR ASSEMBLY

    See step  32

  33. REMOVE EV CHARGER LID SWITCH ASSEMBLY

    See step  31

  34. REMOVE CONNECTOR COVER
    1. Disengage the clamp to remove the connector cover.

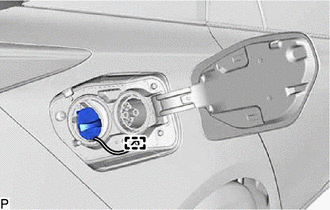

      GTY730465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE BATTERY SERVICE OPENING LID SUB-ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and 4 guides to remove the battery service opening lid sub-assembly as shown in the illustration.

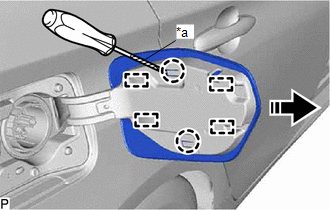

      GTY707852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  36. REMOVE BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY
    1. Apply protective tape around the battery charger connector opening lid sub-assembly as shown in the illustration.

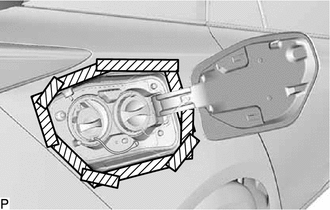

      GTY737989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 3 nuts.

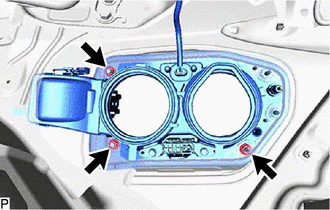

      GTY740593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 guides and remove the battery charger connector opening lid sub-assembly as shown in the illustration.

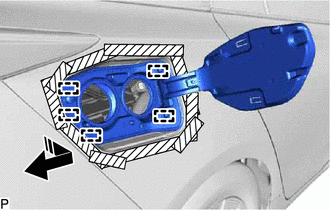

      GTY737126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
