Removal [09/2016 - 05/2019]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Remove the rear seat headrest assembly.
  2. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Remove the rear seat headrest assembly.
  3. REMOVE REAR SEATBACK ASSEMBLY LH
    1. Fold the rear seatback assembly LH forward.
    2. Disengage the 2 fasteners.

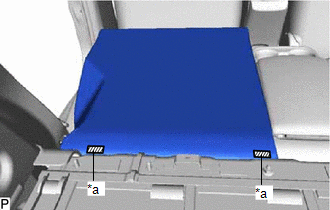

      GTY726952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener

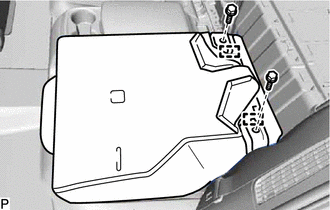

    3. GTY729725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    4. Disengage the 2 guides and remove the rear seatback assembly LH.
      NOTE:

      Be careful not to damage the vehicle body.

  4. REMOVE REAR SEATBACK HINGE COVER
    1. Fold the rear seatback assembly RH forward.
    2. Disengage the 3 claws to remove the rear seatback hinge cover.

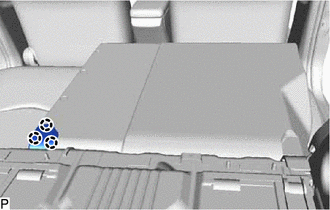

      GTY687716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEATBACK ASSEMBLY RH
    NOTE:

    To prevent the damage to the damper, do not subject it to strong impacts or apply excessive force to the damper such as by leaning on the rear seatback assembly RH.

    1. Disengage the fastener.

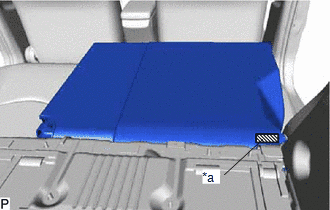

      GTY730982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener

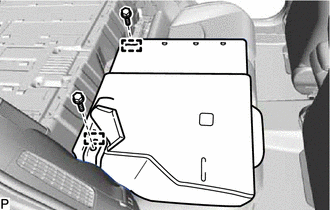

    2. GTY729716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    3. Disengage the 2 guides and remove the rear seatback assembly RH.
      NOTE:

      Be careful not to damage the vehicle body.

  6. REMOVE REAR SEAT CUSHION ASSEMBLY LH
    1. Lift the outer edge of the rear seat cushion assembly LH as shown in the illustration and disengage the rear seat cushion frame hook on the outer side of the rear seat cushion assembly LH from the rear seat cushion lock hook.
      NOTE:

      Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hook when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

      Standard Measurement

      Area Measurement
      A 93 mm (3.66 in.)
      B 63 mm (2.48 in.)

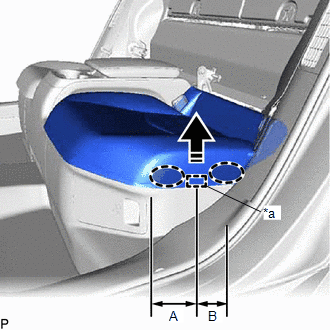

      GTY705361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Outer Side Rear Seat Cushion Frame Hook
      Place Hand Here
      Remove in this Direction
    2. Lift the front edge of the rear seat cushion assembly LH as shown in the illustration and disengage the rear seat cushion frame hook on the front side of the rear seat cushion assembly LH from the rear seat cushion lock hook.
      NOTE:

      Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hook when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

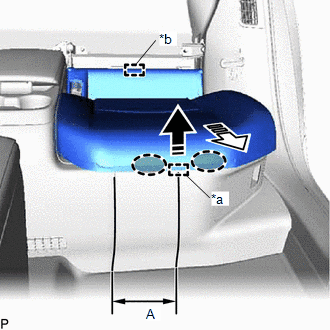

      GTY726806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Side Rear Seat Cushion Frame Hook
      *b Rear Side Rear Seat Cushion Frame Hook
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)

      Standard Measurement

      Area Measurement
      A 135 mm (5.31 in.)
    3. Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly LH.
      NOTE:

      Be careful not to damage the vehicle body.

  7. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE REAR SEAT CUSHION LOCK HOOK
    1. Disengage the 4 claws to remove the 2 rear seat cushion lock hooks as shown in the illustration.

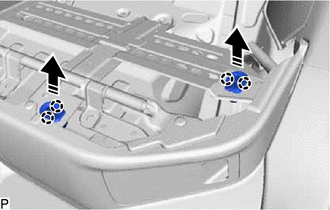

      GTY691107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.
