Removal [09/2016 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

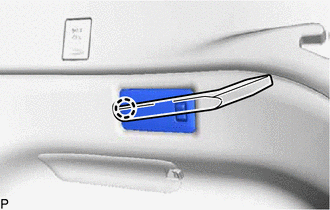

    1. Using a moulding remover, disengage the claw.
      GTY733065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
  2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB
    1. Disengage the claw as shown in the illustration.
      GTY579021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 claws and remove the shade from the No. 1 luggage compartment light lens as indicated by the arrows, in the order shown in the illustration.
      GTY548005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens as shown in the illustration.
      GTY552902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
