Disassembly [09/2016 - ]: Procedure

  1. REMOVE PUSH START SWITCH BRACKET
    1. Disengage the 2 claws to remove the push start switch bracket.
      GTY740597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

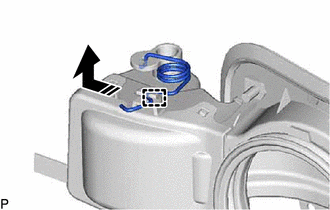

  2. REMOVE FUEL FILLER OPENING LID HINGE SPRING
    1. Disengage the guide and remove the fuel filler opening lid hinge spring as shown in the illustration.
      GTY721995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE EV CHARGER LID INDICATOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE SPOT LIGHT COVER

    Refer to PROCEDURE - Step 26 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 25 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 28 [07/2020 - ]

  5. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 27 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 29 [07/2020 - ]
