Removal [07/2020 - ]: Procedure

  1. PRECAUTION
    WARNING:
    • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

      Refer to PRECAUTION [07/2020 - ]

    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to PRECAUTION [05/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 7

  8. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 8

  9. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 9

  10. REMOVE DECK TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  11. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 11

  12. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  13. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 3

  14. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 4

  15. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  16. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 7

  17. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 8

  18. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 16

  19. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 19

  20. REMOVE REAR UNDER SIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 33

  21. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 34

  22. REMOVE REAR PILLAR COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 35

  23. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 36

  24. REMOVE NO. 1 TONNEAU COVER HOLDER CAP

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37

  25. REMOVE TONNEAU COVER HOOK A

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 46

  26. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 39

  28. REMOVE SPOT LIGHT COVER

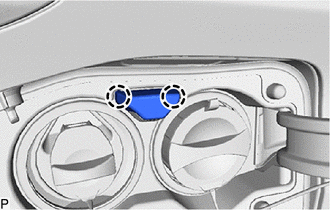

    1. Disengage the 2 claws to remove the spot light cover.
      GTY696343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE SPOT LIGHT ASSEMBLY

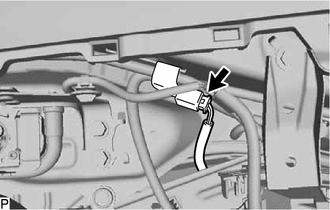

    1. Disconnect the connector.
      GTY696342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

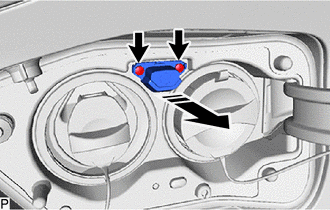

    2. Remove the 2 screws and spot light assembly as shown in the illustration.
      GTY691775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
