Removal [09/2016 - ]: Procedure

  1. REMOVE FUEL FILLER OPENING LID LOCK BRACKET

    Refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]

  2. REMOVE EV CHARGER LID INDICATOR ASSEMBLY

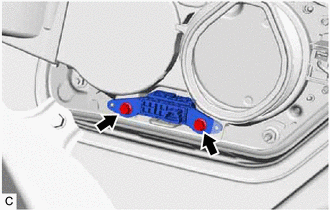

    1. Remove the 2 bolts and EV charger lid indicator assembly from the battery charger connector opening lid sub-assembly.
      GTY718237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
