Removal [09/2016 - 05/2019]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 6

  7. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 7

  8. REMOVE DECK TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE REAR SEATBACK HINGE COVER

    Refer to PROCEDURE - Step 4

  12. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  13. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    Refer to PROCEDURE - Step 7

  14. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 8

  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 14

  16. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the rear door opening trim weatherstrip RH.
  17. REMOVE REAR UNDER SIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 31

  18. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 32

  19. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 33

  20. REMOVE ROPE HOOK (w/o Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 34

  21. REMOVE NO. 2 ROPE HOOK (w/o Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 35

  22. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/ Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 36

  23. REMOVE TONNEAU COVER HOOK A (w/ Garage Door Opener System)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 37

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 38

  26. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 44

  27. REMOVE NO. 2 HYBRID BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 45

  28. DISCONNECT AC CHARGER INLET CABLE (w/o CABLE EV CHARGER LOCK ASSEMBLY)

    See step  28

  29. DISCONNECT AC CHARGER INLET CABLE WITH CABLE EV CHARGER LOCK ASSEMBLY (w/ CABLE EV CHARGER LOCK ASSEMBLY)

    See step  29

  30. REMOVE FUEL FILLER OPENING LID LOCK BRACKET

    See step  30

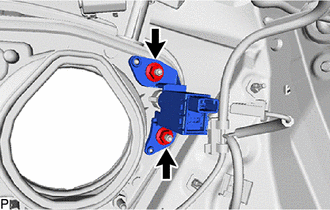

  31. REMOVE EV CHARGER LID SWITCH ASSEMBLY
    1. Remove the 2 nuts and EV charger lid switch assembly.
      GTY696346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
