Removal [11/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).
- DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2
- REMOVE REAR WHEELS
- DRAIN BRAKE FLUID NOTE:
Immediately wash off any brake fluid that comes into contact with any painted surfaces.
- DISCONNECT SKID CONTROL SENSOR WIRE LH
Refer to PROCEDURE - Step 4
- DISCONNECT SKID CONTROL SENSOR WIRE RH
HINT:
Perform the same procedure as the LH side.
- SEPARATE SKID CONTROL SENSOR WIRE LH
See step 7
- SEPARATE SKID CONTROL SENSOR WIRE RH
HINT:
Perform the same procedure as the LH side.

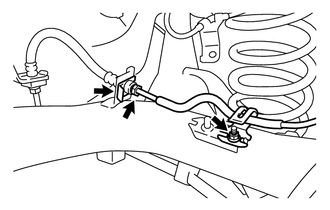

- SEPARATE NO. 4 REAR BRAKE TUBE
- Using a union nut wrench, separate the No. 4 rear brake tube while holding the rear flexible hose LH with a wrench.NOTE:
- Do not bend or damage the brake line.
- Do not allow any foreign matter such as dirt and dust to enter the brake line from the connecting points.
- Remove the clip and separate the rear flexible hose LH from the rear axle beam assembly.
- Remove the nut and separate the No. 4 rear brake tube.
- Using a union nut wrench, separate the No. 4 rear brake tube while holding the rear flexible hose LH with a wrench.
- SEPARATE NO. 3 REAR BRAKE TUBE
HINT:
Perform the same procedure as for the No. 4 rear brake tube.

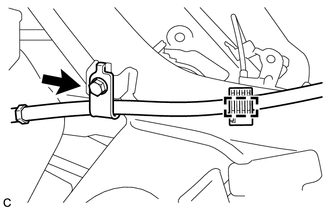

- SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
- Separate the No. 1 parking brake cable clamp from the rear axle beam assembly.
- Remove the bolt and separate the No. 3 parking brake cable assembly.
- Remove the No. 1 parking brake cable clamp from the No. 3 parking brake cable assembly (Refer to PROCEDURE - Step 9
).
HINT:
Replace the clamp with a new one when installing the No. 3 parking brake cable assembly.
- Separate the No. 1 parking brake cable clamp from the rear axle beam assembly.
- SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY
HINT:
Perform the same procedure as for the No. 3 parking brake cable assembly.
- REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
- Remove the 2 rear brake drum sub-assemblies (Refer to PROCEDURE - Step 6 ).
- REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH
Refer to PROCEDURE - Step 6
- REMOVE REAR AXLE HUB AND BEARING ASSEMBLY RH
HINT:
Perform the same procedure as the LH side.
- LOOSEN REAR AXLE BEAM ASSEMBLY
See step 11
- REMOVE REAR COIL SPRING LH
See step 12
- REMOVE REAR COIL SPRING RH
HINT:
Perform the same procedure as the LH side.
- REMOVE REAR UPPER COIL SPRING INSULATOR LH
- REMOVE REAR UPPER COIL SPRING INSULATOR RH
- REMOVE REAR LOWER COIL SPRING INSULATOR LH
- REMOVE REAR LOWER COIL SPRING INSULATOR RH
- REMOVE REAR AXLE BEAM ASSEMBLY
- Support the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools as shown in the illustration.TEXT IN ILLUSTRATION
*1 Engine Lifter *2 Wooden Block *3 Attachment - - NOTE:Make sure to secure the rear axle beam assembly to prevent it from dropping.
- Remove the 2 bolts (A) and 2 nuts while holding the 2 nuts and separate the rear axle beam assembly from the rear shock absorber assemblies LH and RH.NOTE:
Since stopper nuts are used, turn the bolts.
- Remove the 2 bolts (B) and rear axle beam assembly.
- Support the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools as shown in the illustration.
