Removal [11/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).
- DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2
- REMOVE REAR WHEEL
- REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- DISCONNECT SKID CONTROL SENSOR WIRE
Refer to PROCEDURE - Step 4

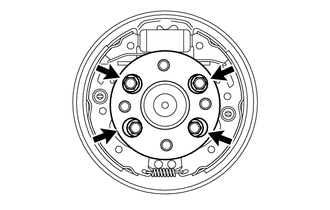

- REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
