Removal [11/2015 - ]: Procedure

(Refer to REMOVAL [11/2015 - ] )

See step  2

See step  3

1. Loosen the lock nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   TEXT IN ILLUSTRATION



   *1

   Lock Nut

   NOTE:

   If the lock nut has been removed from the rod, replace the lock nut with a new one.

(Refer to REMOVAL [11/2015 - ] )

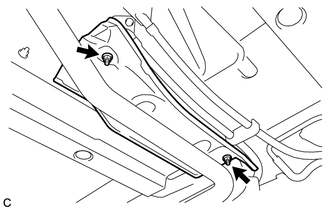

1. Remove the 2 nuts and front No. 4 floor heat insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

1. Remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

2. Remove the bolt and No. 1 fuel tank protector sub-assembly.

1. Disengage the 2 claws to remove the parking brake cable stopper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

2. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   TEXT IN ILLUSTRATION



   *1	Parking Brake Equalizer
   *2	No. 2 Parking Brake Cable Assembly
   *3	No. 3 Parking Brake Cable Assembly

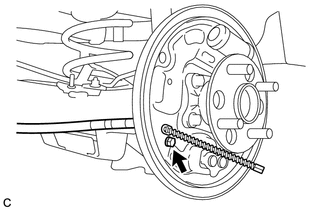

3. Remove the bolt and separate the No. 3 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

4. Remove clamp B from the body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

5. Remove the 4 bolts, disengage clamp A and remove the No. 3 parking brake cable assembly.

1. Disengage the 2 claws to remove the No. 1 parking brake cable clamp from the No. 3 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
