On-Vehicle Inspection [11/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).
- DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 2
- REMOVE REAR WHEEL
- REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
Refer to PROCEDURE - Step 6

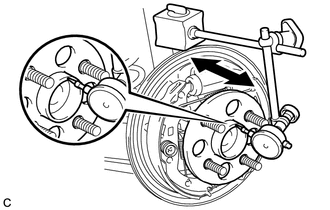

- INSPECT REAR AXLE HUB BEARING LOOSENESS
- Using a dial indicator, check for looseness near the center of the rear axle hub.
Maximum looseness
0.05 mm (0.00196 in.)
NOTE:- Ensure that the dial indicator is set perpendicular to the measurement surface.
- Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly (rear speed sensor).
If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.
- Using a dial indicator, check for looseness near the center of the rear axle hub.

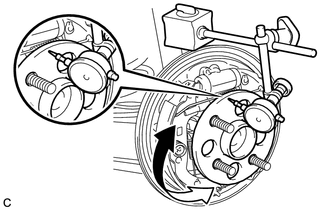

- INSPECT REAR AXLE HUB RUNOUT
- Using a dial indicator, check for runout on the surface of the axle hub outside the rear axle hub bolts.
Maximum runout
0.07 mm (0.00276 in.)
NOTE:- Ensure that the dial indicator is set perpendicular to the measurement surface.
- Make sure to set the tip of the dial indicator towards the outside of the rear axle hub bolts.
- Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly (rear speed sensor).
If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.
- Using a dial indicator, check for runout on the surface of the axle hub outside the rear axle hub bolts.
- INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
- INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- Connect the cable to the negative (-) auxiliary battery terminal (Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2 ).
- Connect the reservoir level switch connector.
- Clear the DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
