Removal [07/2020 -]: Procedure

PRECAUTION

Refer to PRECAUTION [11/2015 -]

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [07/2020 -]

NOTE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [08/2019 -]

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2020 -]

REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
Refer to REMOVAL [11/2015 -]
REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [12/2018 -]

REMOVE INSTRUMENT PANEL FINISH PANEL END LH

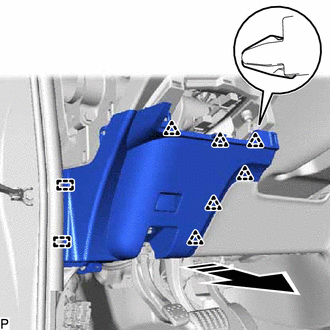

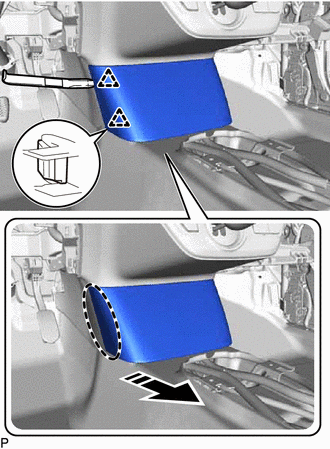

Using a moulding remover, disengage the 6 clips as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

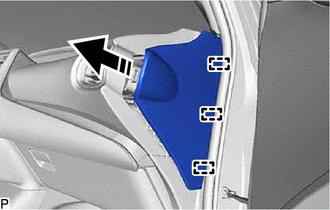

Disengage the 3 guides to remove the instrument panel finish panel end LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

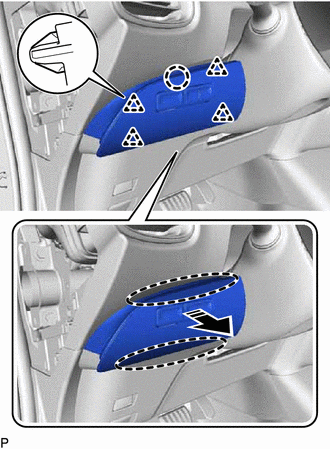

Disengage the 4 clips and claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

Disconnect each connector to remove the instrument cluster finish panel garnish assembly.

REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 19
REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 20

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Remove the 2 screws <F>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disengage the guide as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the connector to remove the No. 1 instrument panel under cover sub-assembly.

DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Disengage the claw and 2 guides to disconnect the hood lock control lever sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Remove the screw <C>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 6 clips and 2 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the connector to remove the lower instrument panel finish panel assembly.

REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 10

REMOVE INSTRUMENT PANEL FINISH PANEL END RH

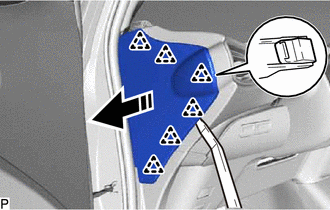

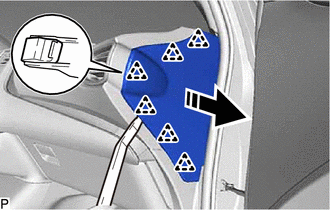

Using a moulding remover, disengage the 6 clips as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

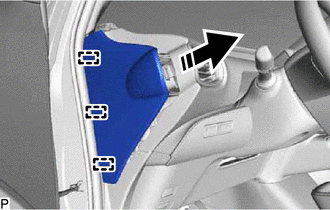

Disengage the 3 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the instrument panel finish panel end RH.

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Navigation System)

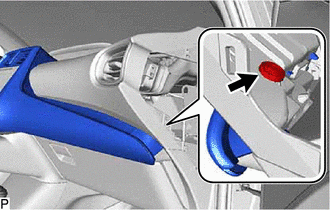

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

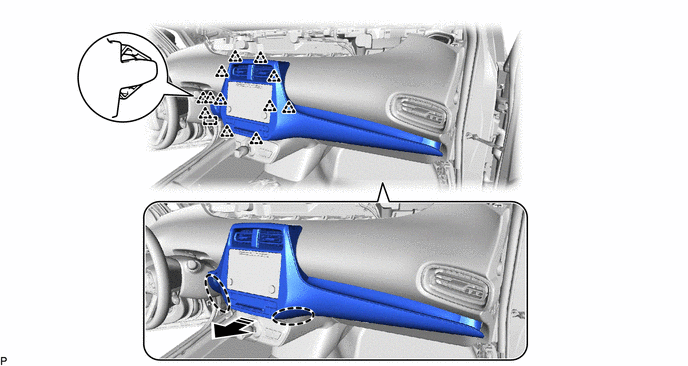

Disengage the 6 clips and 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here		Remove in this Direction
	Order of Removal	-	-

Disengage the 12 clips and guide as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hand Here

Remove in this Direction

Disconnect each connector.

Determine the type of air conditioning control assembly according to the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Type A
*B	for Type B

for Type A:

Remove the air conditioning control assembly from the center instrument cluster finish panel sub-assembly and disengage the clamp as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Push
	Remove in this Direction

for Type B:

Disengage the clamp as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the center instrument cluster finish panel sub-assembly.

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER (w/ Navigation System)

Apply protective tape to the area shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Using a moulding remover, disengage the 4 clips as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Insert Moulding Remover Here
	Remove in this Direction

Disengage the claw and 2 clips as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

Disengage the claw, clip and base of the front pillar garnish clip as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front Pillar Garnish Clip	*2	Lower Instrument Panel Sub-assembly
	Place Hand Here		Remove in this Direction

While pushing the tabs of the front pillar garnish clip as shown in the illustration, disengage the front pillar garnish clip and remove the center instrument cluster finish panel upper.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

NOTE:

The front pillar garnish clip is reusable if it is not damaged.
If the front pillar garnish clip is damaged, replace it with a new one.

HINT:

When the front pillar garnish clip cannot be disengaged easily:

While pushing the tab of the front pillar garnish clip shown in the illustration with your finger, move the front pillar garnish clip in the direction shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Move in this Direction

While pulling the front pillar garnish clip as shown in the illustration, push the tab of the front pillar garnish clip shown in the illustration with a screwdriver and disengage the front pillar garnish clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in this Direction

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)

Apply protective tape to the areas shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts <B>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

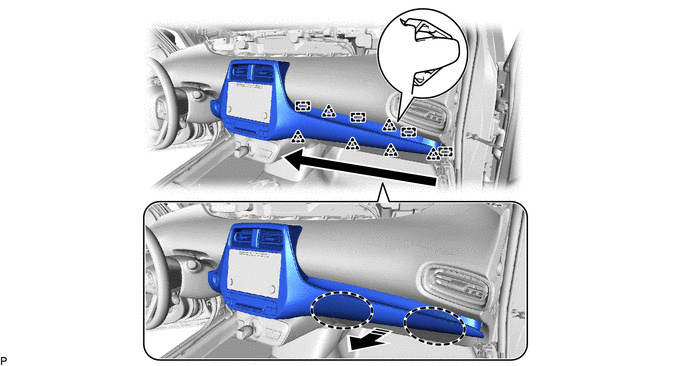

Disengage the 6 clips and 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here		Remove in this Direction
	Order of Removal	-	-

Disengage the 10 clips and guide as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hand Here

Remove in this Direction

Disconnect each connector.
Disengage the clamp to remove the center instrument cluster finish panel sub-assembly with navigation receiver assembly.

REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)
Refer to PROCEDURE - Step 4
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.
REMOVE COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure as for the LH side.

REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

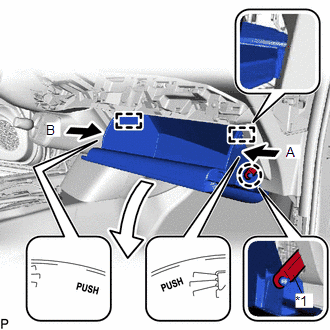

Disengage the 3 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disengage the 2 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the connector to remove the No. 2 instrument panel under cover sub-assembly.

REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Disengage the claw to disconnect the glove compartment door stopper sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Glove Compartment Door Stopper Sub-assembly

Slightly bend stoppers (A) and (B) in the directions indicated by the arrows shown in the illustration and open the glove compartment door assembly until the stoppers are released.

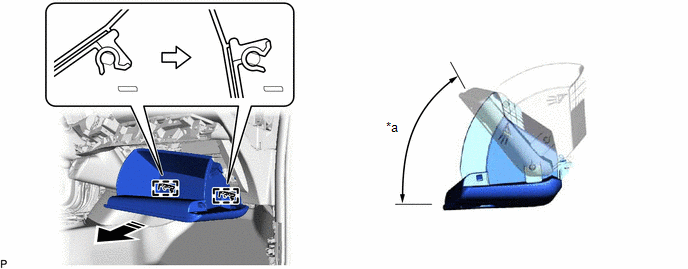

Open the glove compartment door assembly to approximately 64.2° from its closed position. Pull it horizontally in the direction indicated by the arrow shown in the illustration to disengage the 2 hinges and remove the glove compartment door assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	64.2°	-	-
	Remove in this Direction	-	-

NOTE:

Pulling the glove compartment door assembly upward when removing it will cause the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.

REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

Disengage the claw to remove the glove compartment door stopper sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Using a moulding remover, disengage the 2 clips as shown in the illustration.

	Insert Moulding Remover Here
	Remove in this Direction

Using a moulding remover, disengage the 2 clips as shown in the illustration.

	Insert Moulding Remover Here
	Remove in this Direction

Disengage the clip as shown in the illustration.

Remove in this Direction

Disconnect each connector.
Disengage each clamp to remove the lower center instrument cluster finish panel sub-assembly.

REMOVE SHIFT LEVER HOLE COVER

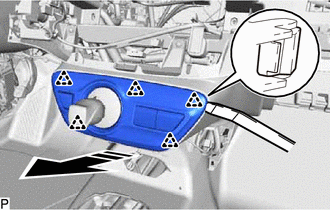

Using a moulding remover, disengage the 5 clips as shown in the illustration.

Remove in this Direction

Disconnect each connector to remove the shift lever hole cover.

REMOVE NO. 2 LOWER INSTRUMENT PANEL FINISH PANEL

Disengage the 4 clips as shown in the illustration.

	Place Hand Here
	Remove in this Direction

Disengage the 5 clips to remove the No. 2 lower instrument panel finish panel as shown in the illustration.

	Place Hand Here
	Remove in this Direction

REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

Apply protective tape to the areas shown in the illustration.

Protective Tape

Using a moulding remover, disengage the 4 clips to remove the No. 1 instrument panel register assembly as shown in the illustration.

Remove in this Direction

REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

Apply protective tape to the areas shown in the illustration.

Protective Tape

Using a moulding remover, disengage the 4 clips to remove the No. 2 instrument panel register assembly as shown in the illustration.

Remove in this Direction

REMOVE GLOVE BOX LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 3

REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Disengage the 2 claws and 4 clips to disconnect the lower instrument cover sub-assembly from the upper steering column cover.

Remove in this Direction

Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor as shown in the illustration.

w/o Navigation System:

Disconnect each connector.

w/ Telematics Transceiver

w/ Satellite Radio

Disengage each clamp.

Remove the 2 clips.

*a	Bolt <A>	*b	Bolt <B>
*c	Screw <C> or <G>	*d	Screw <D>
*e	Clip	-	-

Remove the 2 bolts <A>, 4 bolts <B>, 3 screws <C> or <G> and screw <D> and remove the lower instrument panel sub-assembly.
NOTE:
- Do not damage the lower instrument panel sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.

w/ Navigation System:

Disconnect each connector.

w/ Telematics Transceiver

w/ Satellite Radio

Disengage each clamp.

Remove the 2 clips.

*a	Bolt <A>	*b	Bolt <B>
*c	Screw <C> or <G>	*d	Screw <D>
*e	Clip	-	-

Remove the 2 bolts <A>, 6 bolts <B>, 3 screws <C> or <G>, screw <D> and lower instrument panel sub-assembly.
NOTE:
- Do not damage the lower instrument panel sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
