Removal [08/2019 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [08/2019 - 07/2020] , or refer to PRECAUTION [07/2020 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 14 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 14 [07/2020 -]

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 15 [07/2020 -]

  4. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
    1. Remove the 4 bolts.
      GTY871070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

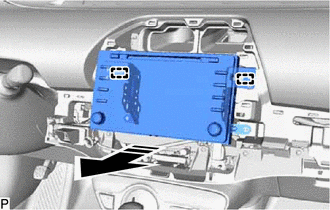

    2. Pull the radio receiver assembly with bracket toward the rear of the vehicle to disengage the 2 guides.
      GTY877797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio receiver assembly with bracket.
  5. REMOVE NO. 1 RADIO BRACKET

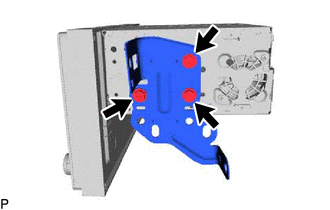

    1. Remove the 3 screws and No. 1 radio bracket.
      GTY920310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket.
      GTY920309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
