Removal [11/2015 -]: Procedure

  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 21 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 23 [11/2017 - 12/2018] , or refer to PROCEDURE - Step 23 [12/2018 - 08/2019] , or refer to PROCEDURE - Step 22 [08/2019 - 07/2020] , or refer to PROCEDURE - Step 22 [07/2020 -]

  2. REMOVE GLOVE BOX LIGHT ASSEMBLY
    1. Disconnect the connector.

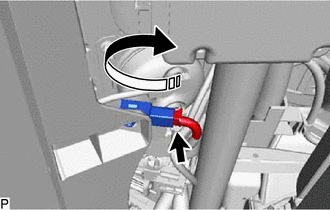

      GTY608840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Turn the glove box light assembly as shown in the illustration to remove it.
