Removal [11/2015 - ]: Procedure

  1. PRECAUTION

    (Refer to PRECAUTION [11/2015 - ] )

    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or Refer to PRECAUTION [06/2017 - ] )

  2. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 3 , or Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2015 - 06/2017] , or Refer to INITIALIZATION [06/2017 - ] )

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 , or Refer to PROCEDURE - Step 4

  5. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

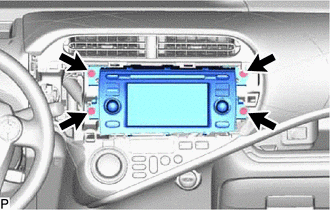

    1. Remove the 4 screws.
      GTY326532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

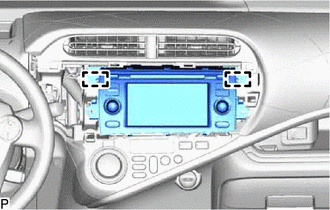

    2. Disengage the 2 guides and pull the navigation receiver assembly with bracket toward the rear of the vehicle.
      GTY326531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the navigation receiver assembly with bracket.
  6. REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 1 RADIO RECEIVER BRACKET (w/ Satellite Radio)

    Refer to PROCEDURE - Step 7

  8. REMOVE NO. 2 RADIO RECEIVER BRACKET (w/ Satellite Radio)

    Refer to PROCEDURE - Step 8

  9. REMOVE STEREO COMPONENT TUNER ASSEMBLY (w/ Satellite Radio)
  10. REMOVE NO. 1 RADIO BRACKET

    Refer to PROCEDURE - Step 3 , or Refer to PROCEDURE - Step 3

  11. REMOVE NO. 2 RADIO BRACKET

    Refer to PROCEDURE - Step 4 , or Refer to PROCEDURE - Step 4

  12. REMOVE NAVIGATION ECU COVER SUB-ASSEMBLY
