Removal [06/2017 - ]: Procedure
- PRECAUTION
Refer to PRECAUTION [11/2015 - ]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [06/2017 - ]
- REMOVE FRONT FLOOR COVER RH
Refer to PROCEDURE - Step 3
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [06/2017 - ]

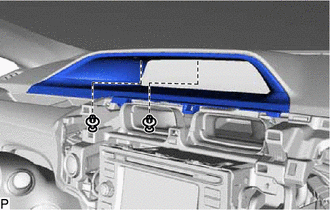

- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

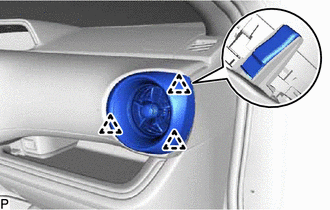

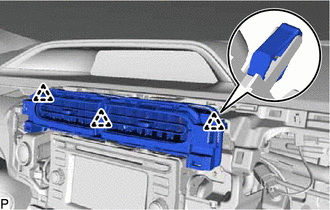

- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

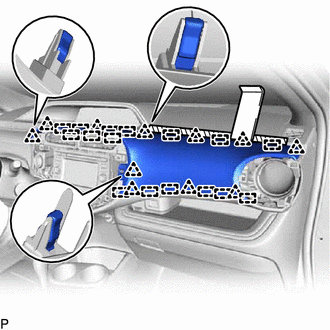

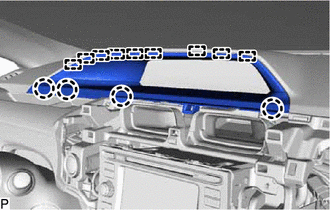

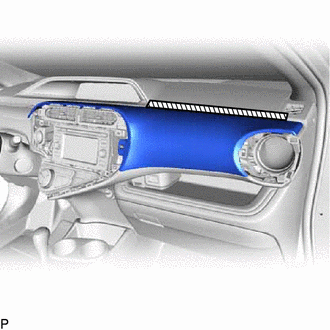

- REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH
- REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

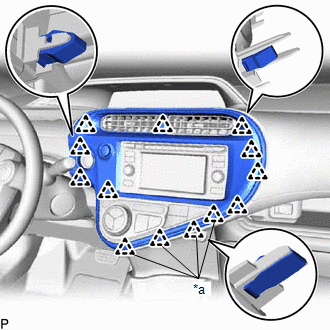

- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 9
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- Disconnect the front door opening trim weatherstrip LH.
- REMOVE FRONT PILLAR GARNISH LH
See step 7
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- Disconnect the front door opening trim weatherstrip RH.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.

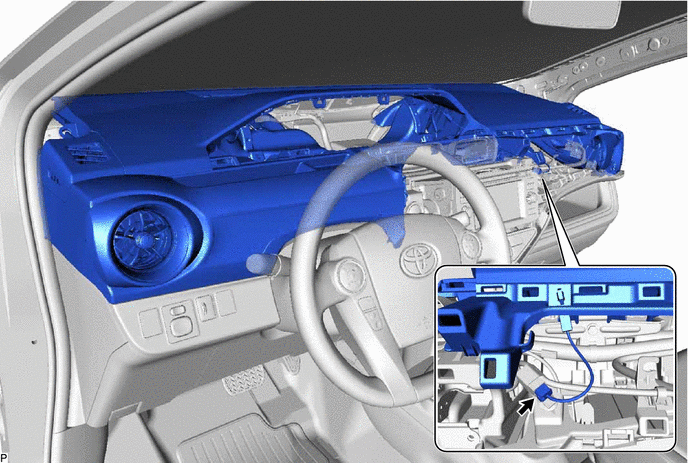

- DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 3
- REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
- w/ Navigation System:

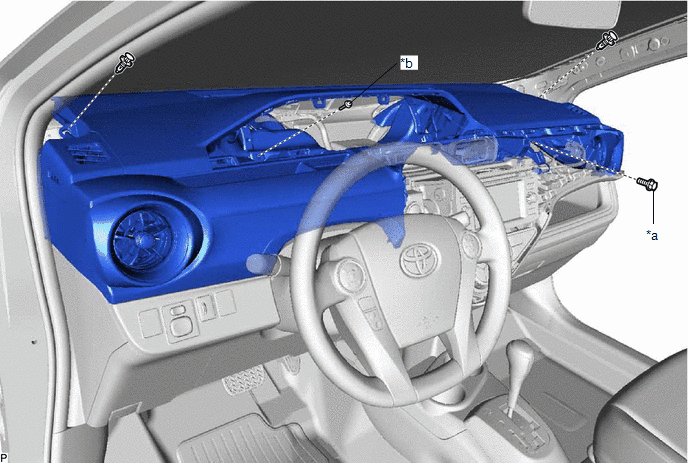

- Remove the bolt <A>.
*a Bolt <A> *b Screw <C> - Remove the screw <C>.
- Using a clip remover, remove the 2 clips.

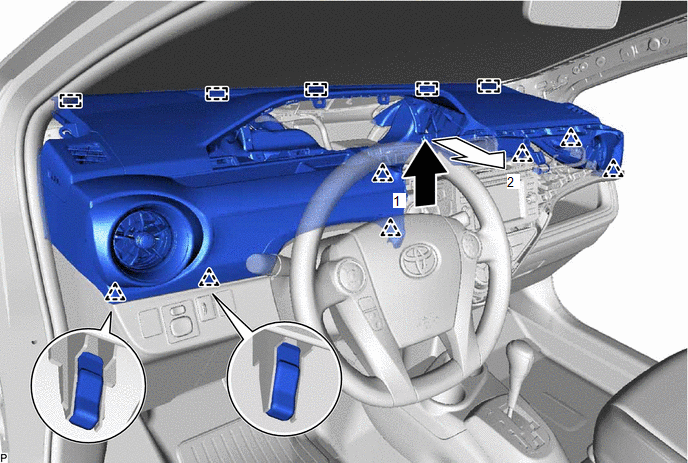

- Pull the upper instrument panel assembly in the direction indicated by the arrow (1) to disengage the 7 clips.
- Pull the upper instrument panel assembly in the direction indicated by the arrow (2) to disengage the 5 guides and remove the upper instrument panel assembly.
