Removal [11/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] )

  2. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2015 - 06/2017] , or refer to INITIALIZATION [06/2017 - ] )

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  5. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

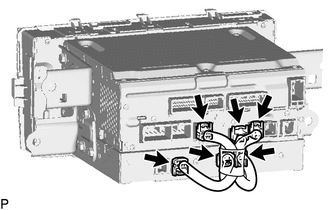

  6. REMOVE NO. 1 NAVIGATION WIRE
    1. Disconnect each connector to remove the No. 1 navigation wire.
      GTY472203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

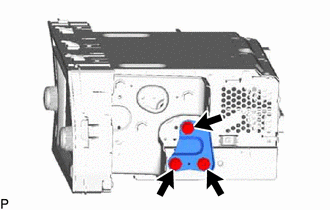

  7. REMOVE NO. 1 RADIO RECEIVER BRACKET
    1. Remove the 3 screws and No. 1 radio receiver bracket.
      GTY480971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

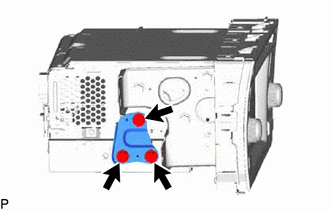

  8. REMOVE NO. 2 RADIO RECEIVER BRACKET
    1. Remove the 3 screws and No. 2 radio receiver bracket.
      GTY472202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  9. REMOVE STEREO COMPONENT TUNER ASSEMBLY
