Removal [06/2017 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

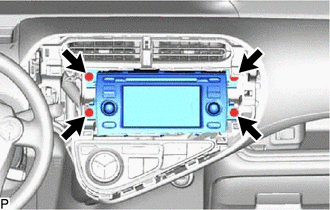

    1. Remove the 4 screws.
      GTY772070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

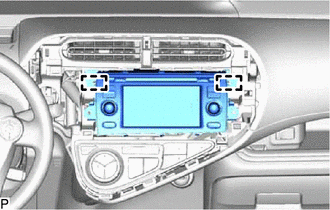

    2. Disengage the 2 guides and pull the radio and display receiver assembly with bracket toward the rear of the vehicle.
      GTY756578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    3. Disconnect each connector and remove the radio and display receiver assembly with bracket.
  3. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 3 screws and No. 1 radio bracket.
      GTY331640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  4. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 3 screws and No. 2 radio bracket.
      GTY331641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  5. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
