Removal [10/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Navigation Receiver Type) NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
- REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 1 Refer to PROCEDURE - Step 1
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Radio and Display Type)
Refer to PROCEDURE - Step 3
- REMOVE NAVIGATION RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY (for Navigation Receiver Type)
Refer to PROCEDURE - Step 5
- REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 4
- REMOVE NO. 1 RADIO RECEIVER BRACKET
Refer to PROCEDURE - Step 5
- REMOVE NO. 2 RADIO RECEIVER BRACKET
Refer to PROCEDURE - Step 6

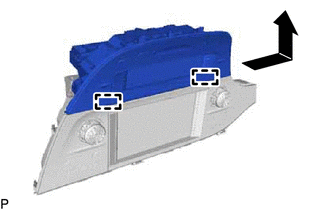

- REMOVE AIR CONDITIONING CONTROL ASSEMBLY
