Removal [11/2015 - ]: Procedure

  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    (Refer to REMOVAL [11/2015 - ] )

  2. REMOVE NO. 2 EGR PIPE

    Refer to PROCEDURE - Step 2

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

    Refer to PROCEDURE - Step 3

  5. REMOVE INTAKE MANIFOLD STAY

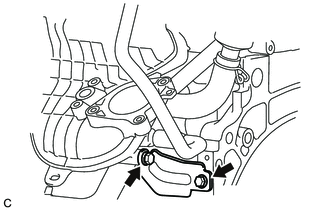

    1. Remove the 2 bolts and intake manifold stay.
      GTY342817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  6. REMOVE INTAKE MANIFOLD

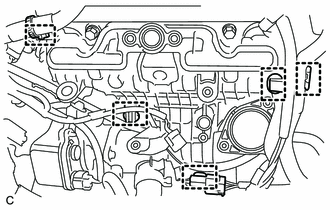

    1. Disconnect the 4 wire harness clamps and water by-pass hose.
      GTY719765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

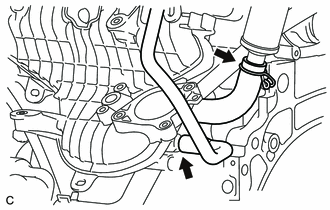

    2. Disconnect the fuel vapor feed hose and ventilation hose.
      GTY339685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

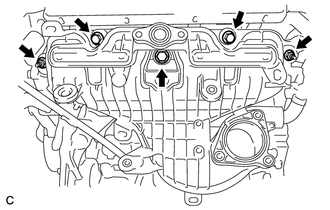

    3. Remove the 3 bolts, 2 nuts and intake manifold.
      GTY342465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

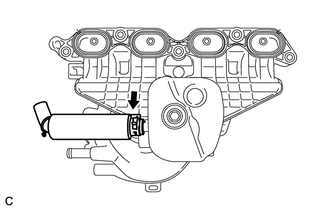

    4. Remove the ventilation hose.
      GTY342459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

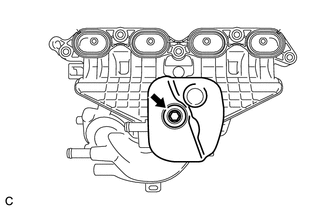

    5. Remove the bolt and intake manifold insulator.
      GTY342467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

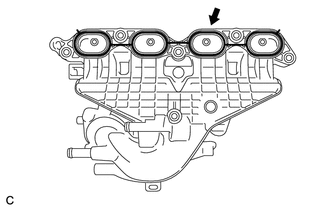

    6. Remove the No. 1 intake manifold to head gasket.
      GTY342381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
