Installation [12/2013 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY

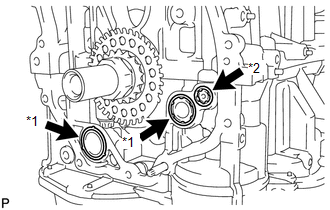

    1. Apply a light coat of engine oil to 2 new oil pump gaskets and a new oil hole cover gasket.
      GTY437395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Pump Gasket
      *2 Oil Hole Cover Gasket
    2. Install the 2 oil pump gaskets and oil hole cover gasket to the stiffening crankcase assembly.

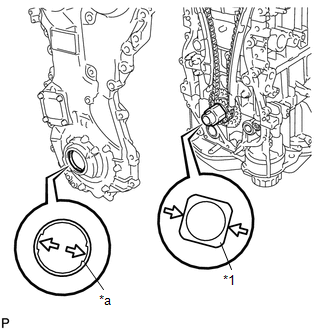

    3. Align the drive rotor spline and the crankshaft timing sprocket as shown in the illustration.
      GTY454392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Drive Rotor Spline
      *2 Crankshaft Timing Sprocket

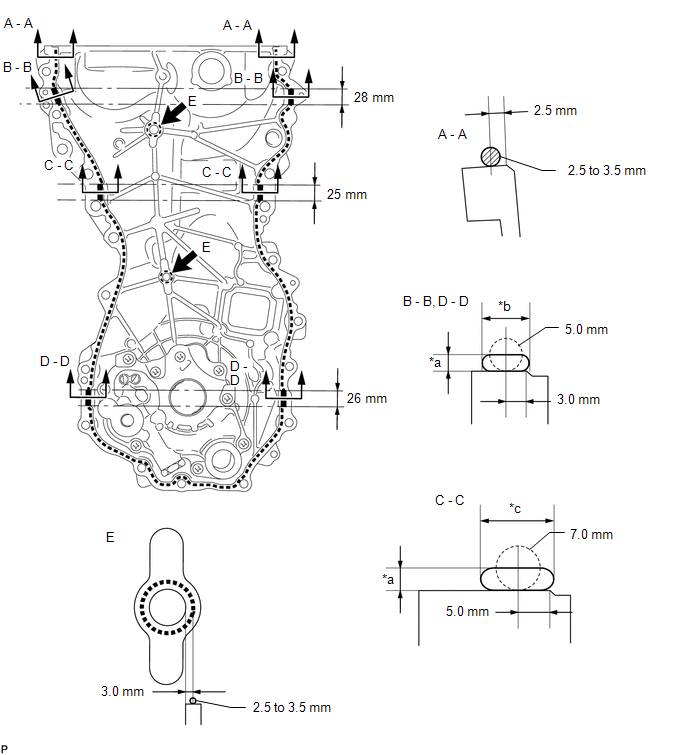

    4. Apply seal packing in a line to the timing chain cover sub-assembly as shown in the following illustration.
      GTY441159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 3.0 mm or more *b 7.0 mm or more
      *c 13.0 mm or more - -

      Seal Packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent.

      Seal Packing Application Chart

      Area Seal Packing Diameter (Round) Distance from Edge of Cover to Center of Seal Packing Seal Packing Application Length
      Seal Packing Dimension (Flat)
      Dashed Line 2.5 to 3.5 mm (0.0984 to 0.0138 in.) 2.5 mm (0.0984 in.) -
      -
      A - A 2.5 to 3.5 mm (0.0984 to 0.0138 in.) 2.5 mm (0.0984 in.) -
      -
      B - B 5.0 mm (0.197 in.) 3.0 mm (0.118 in.) 28 mm (1.10 in.)
      7.0 mm (0.276 in.) or wider and 3.0 mm (0.118 in.) or thicker
      C - C 7.0 mm (0.276 in.) 5.0 mm (0.197 in.) 25 mm (0.984 in.)
      13.0 mm (0.512 in.) or wider and 3.0 mm (0.118 in.) or thicker
      D - D 5.0 mm (0.197 in.) 3.0 mm (0.118 in.) 26 mm (1.02 in.)
      7.0 mm (0.276 in.) or wider and 3.0 mm (0.118 in.) or thicker
      E 2.5 to 3.5 mm (0.0984 to 0.0138 in.) 3.0 mm (0.118 in.) -
      -
      NOTE:
      • Clean the surfaces with non-residue solvent before applying seal packing.
      • Install the timing chain cover sub-assembly within 3 minutes and tighten the bolts within 10 minutes of applying seal packing.
      • After applying seal packing to the timing chain cover sub-assembly, install the engine mounting bracket RH within 10 minutes.
      • Do not add oil for at least 2 hours after installation.
      • Do not start the engine for at least 2 hours after installation.
    5. Temporarily install the timing chain cover sub-assembly with the 17 bolts and 2 nuts.

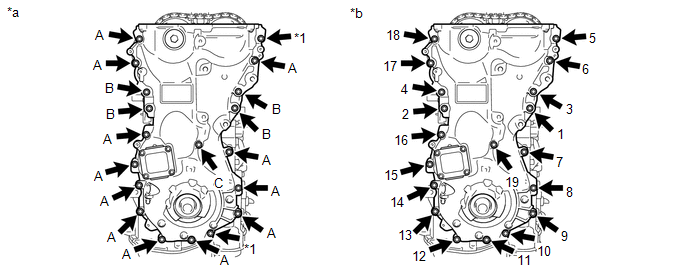

      Fig 1: Timing Cover Tightening Sequence
      GTY440918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Nut - -
      *a Torque *b Tightening Order

      Bolt Length

      Item Length Thread Diameter
      Bolt (A) 30 mm (1.18 in.) 8 mm (0.315 in.)
      Bolt (B) 35 mm (1.38 in.) 10 mm (0.394 in.)
      Bolt (C) 45 mm (1.77 in.) 8 mm (0.315 in.)
      NOTE:

      Make sure there is no oil on the bolts. If oil is found on any bolt, clean it before installation.

    6. Tighten the 17 bolts and 2 nuts in several steps, in the order shown in the illustration.

      Bolt (A), (C) and Nut

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Bolt (B)

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  2. INSTALL ENGINE MOUNTING BRACKET RH

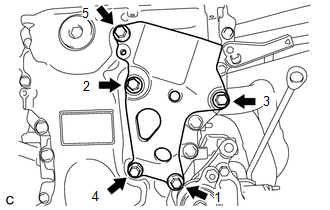

    1. Install the engine mounting bracket RH with the 5 bolts in the order shown in the illustration.
      GTY438389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (1), (2) and (3)

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

      Bolt (4) and (5)

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:

      After applying seal packing to the timing chain cover sub-assembly, install the engine mounting bracket RH within 10 minutes.

  3. INSTALL TIMING CHAIN COVER OIL SEAL

    Refer to PROCEDURE - Step 1

  4. INSTALL CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 46

  5. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  6. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 50

  7. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  8. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to INSTALLATION [12/2013 - 11/2016]
