Reassembly [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

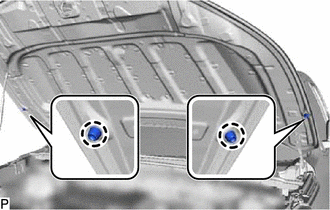

  1. INSTALL HOOD CUSHION
    1. Engage the 2 claws to install 2 new hood cushions.
      GTY429945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

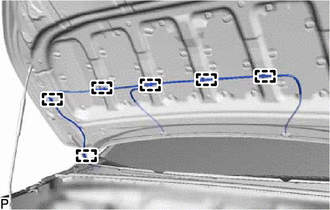

  2. CONNECT WASHER HOSE ASSEMBLY
    1. Engage the 6 clamps to connect the washer hose assembly.
      GTY429946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

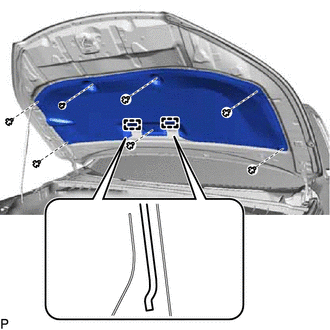

  6. INSTALL HOOD INSULATOR
    1. Engage the 2 guides.
      GTY429947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the hood insulator with 7 new hood insulator clips.

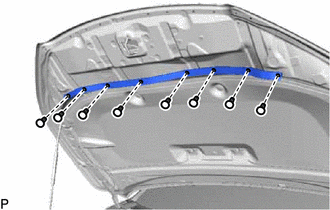

  7. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Install the hood to radiator support seal with 8 new hood to radiator support seal clips.
      GTY429948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

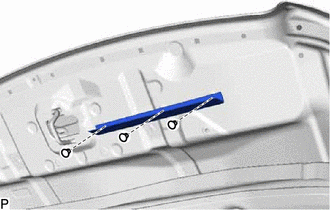

  8. INSTALL HOOD TO RADIATOR SUPPORT SEAL
    1. Install the hood to radiator support seal with 3 new hood to radiator support seal clips.
      GTY429949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
