Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.

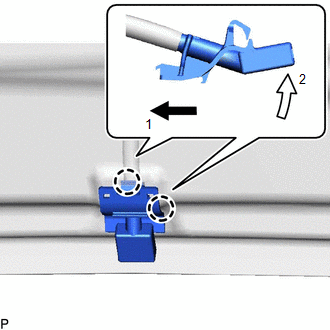

    2. Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.
      GTY427110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the LH side and RH side.

  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    See step  1

  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    See step  2
