Adjustment [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY
    1. Select a washer nozzle sub-assembly so that the contact area is within the standard. Replace the washer nozzle sub-assembly with the selected one.

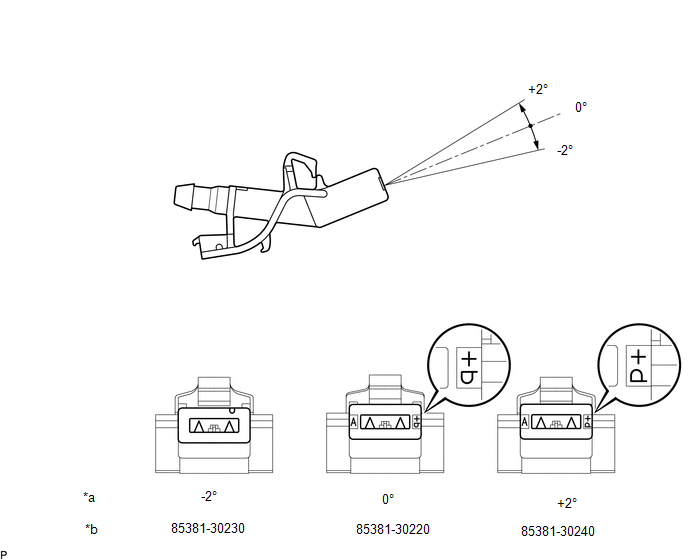

      GTY429636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Washer Fluid Spray Angle *b Part Number
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to INSTALLATION [02/2014 - ]
