On-Vehicle Inspection [02/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid hits the windshield glass.
Standard

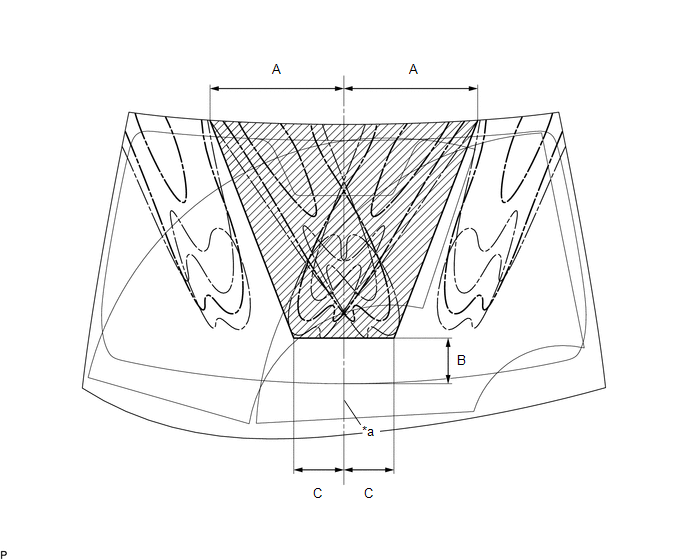

Washer fluid hits the windshield glass in the areas shown in the illustration.
*a Vehicle Center Line - - Measurement - - Standard Measurement
Area Measurement Area Measurement A 398.3 mm (1.30 ft.) B 135.3 mm (5.33 in.) C 149.7 mm (5.89 in.) - - HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid hits the windshield glass.
