Installation [11/2015 - ]: Procedure
- INSTALL REAR COOLING UNIT ASSEMBLY
- Engage the guide.

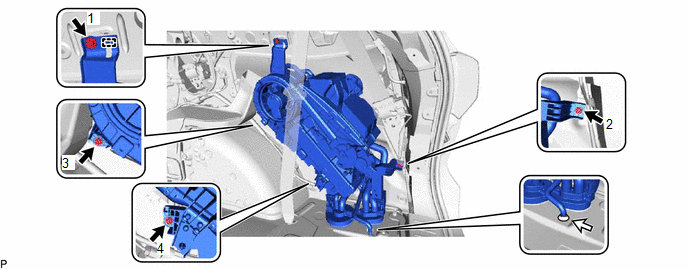

- Install the rear cooling unit assembly with the 4 bolts.NOTE:
Tighten the bolts in the order shown in the illustration to install the rear cooling unit assembly.
- Connect the drain cooler hose.
- Engage each clamp.
- Connect each connector.
- INSTALL REAR NO. 5 AIR DUCT
- Install the rear No. 5 air duct with the 2 clips.
- INSTALL NO. 1 COOLER AIR DUCT
- Install the No. 1 cooler air duct.
- INSTALL COOLER PLATE
- Engage the 2 claws to install the cooler plate.
- INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 23 , or refer to PROCEDURE - Step 21
- INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
Refer to PROCEDURE - Step 36 , or refer to PROCEDURE - Step 34
- INSTALL ROPE HOOK
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 26 , or refer to PROCEDURE - Step 24
- INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 27 , or refer to PROCEDURE - Step 25
- INSTALL DECK TRIM POCKET COVER
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 26
- INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
See step 1
- CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 10 , or refer to PROCEDURE - Step 10
- INSTALL NO. 1 DECK SIDE TRIM COVER
Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 42
- CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 10
- INSTALL FRONT DECK SIDE TRIM COVER RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 31
- INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 61 , or refer to PROCEDURE - Step 59
- INSTALL REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 51 , or refer to PROCEDURE - Step 49
- INSTALL REAR OUTER SEAT TRACK BRACKET COVER RH
Refer to PROCEDURE - Step 5
- INSTALL REAR NO. 2 SEAT ASSEMBLY
Refer to INSTALLATION [02/2014 - 11/2016] , or refer to INSTALLATION [11/2016 - ]
- INSTALL REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 69 , or refer to PROCEDURE - Step 67
- INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 70 , or refer to PROCEDURE - Step 68
- INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 71 , or refer to PROCEDURE - Step 69
- INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 72 , or refer to PROCEDURE - Step 70
- INSTALL DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 73 , or refer to PROCEDURE - Step 71
- CONNECT NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY
- Connect the outlet heater water hose with the marking within the area shown in the illustration.

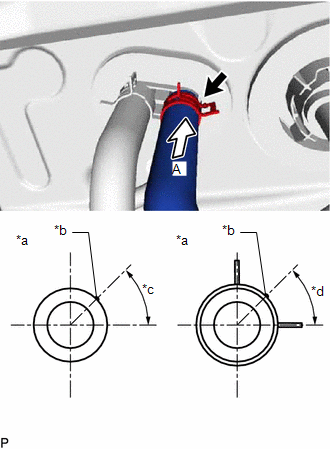

*a View A *b Marking (Yellow) *c Outlet Heater Water Hose Installation Angle (30 to 60°) *d Clip Installation Angle (15 to 75°) NOTE:Do not apply excessive force to the outlet heater water hose.
- Engage the clip within the area shown in the illustration.
- Connect the inlet heater water hose with the marking within the area shown in the illustration.

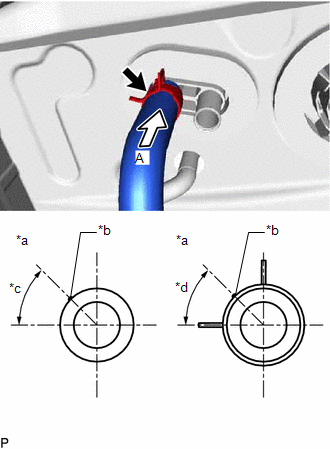

*a View A *b Marking (Yellow) *c Inlet Heater Water Hose Installation Angle (30 to 60°) *d Clip Installation Angle (15 to 75°) NOTE:Do not apply excessive force to the inlet heater water hose.
- Engage the clip within the area shown in the illustration.
- Remove the vinyl tape from the liquid tube.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the liquid tube.
Compressor Oil
ND-OIL 11 or equivalent
- Install the O-ring to the liquid tube.
- Connect the liquid tube.
- Remove the vinyl tape from the suction tube.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the suction tube.
Compressor Oil
ND-OIL 11 or equivalent
- Install the O-ring to the suction tube.
- Connect the suction tube.

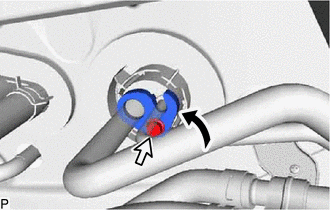

- Rotate the hook connector as shown in the illustration.
- Insert the tube joint into the fitting hole securely and install the bolt.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
- Connect the outlet heater water hose with the marking within the area shown in the illustration.
- INSTALL NO. 1 LUGGAGE COMPARTMENT SIDE COVER PROTECTOR
- Install the No. 1 luggage compartment side cover protector with the 3 screws, bolt and clip.
- ADD ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 2
- INSPECT FOR COOLANT LEAK (for Engine)
Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1
- CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT
See step 2
- WARM UP COMPRESSOR
See step 3
- INSPECT FOR REFRIGERANT LEAK
See step 4
