Installation [11/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL LUGGAGE COMPARTMENT LIGHT BULB
    1. Install the luggage compartment light bulb to the No. 1 luggage compartment light lens as shown in the illustration.
      GTY539130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 3 claws to install the shade to the No. 1 luggage compartment light lens as shown in the illustration.
      GTY597628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Connect the connector.

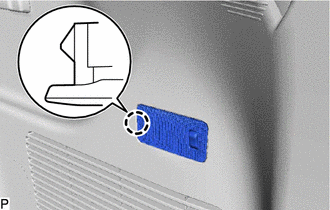

    2. Engage the claw to install the No. 1 luggage compartment light assembly.
      GTY557011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
