On-Vehicle Inspection [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT FOR COOLANT LEAK (for Engine)

WARNING:

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

Remove the radiator cap sub-assembly.

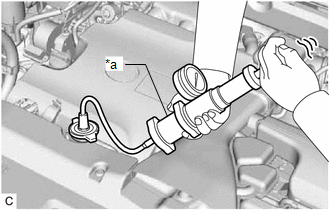

Fill the radiator assembly with engine coolant, and then install a radiator cap tester.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Radiator Cap Tester

Put the engine in inspection mode (maintenance mode).
Refer to INSPECTION MODE PROCEDURE [02/2014 - 11/2016]
Warm up the engine.
Pump the radiator cap tester to 122.7 kPa (1.3 kgf/cm² , 17.8 psi), and then check that the pressure does not drop.
- If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.
- If there are no signs of external engine coolant leaks, check the heater core, cylinder block and cylinder head.
Remove the radiator cap tester.
Install the radiator cap sub-assembly.

INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK (for Engine)

Check that the engine coolant level is between the low line and full line when the engine is cold.

*a	Full Line
*b	Low Line

If the engine coolant level is low, check for leaks and add engine coolant to the full line.

NOTE:

Do not substitute plain water for engine coolant.

INSPECT ENGINE COOLANT QUALITY (for Engine)
WARNING:
Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
1. Remove the radiator cap sub-assembly.
2. Check if there are any excessive deposits of rust or scale around the radiator cap sub-assembly and water filler hole. Also, the engine coolant should be free of oil.
  If excessively dirty, replace the engine coolant.
3. Install the radiator cap sub-assembly.
