Reassembly [02/2014 - 11/2016]: Procedure

1. Install the 2 seat adjuster cover caps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage each claw and each clamp to install the No. 1 seat wire.

1. Engage each claw and each clamp to install the front seat wire.

1. Engage the 2 springs to install the seat track adjusting handle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 3 claws and guide to install the RH seat front seat cushion edge protector LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1

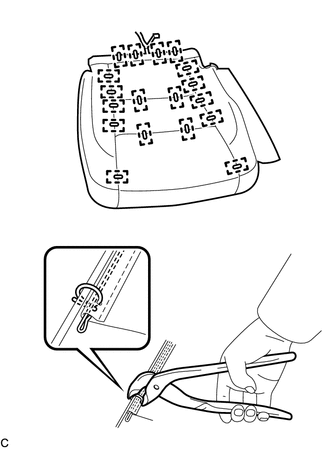

1. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 18 new hog rings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage the separate type front seat cushion cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

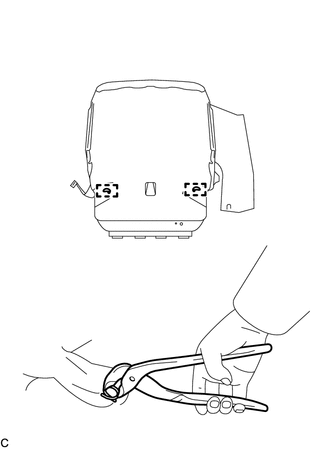

2. Using hog ring pliers, install 2 new hog rings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage the separate type front seat cushion cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

1. Engage the 11 hooks to install the separate type front seat cushion cover with pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. w/ Seat Heater System:
   1. Engage the 3 clamps.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 front seatback hooks to the separate type front seatback spring assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage each claw to install the 2 front seatback edge protectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1

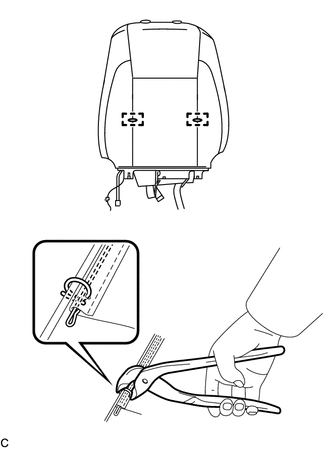

1. Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 2 new hog rings.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be careful not to damage the separate type front seatback cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Using hog ring pliers, install 4 new hog rings.

   NOTE:

   • Be careful not to damage the separate type front seatback cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

1. Install the separate type front seatback cover with pad.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Engage each claw to install the 2 front seat headrest support assemblies.

2. Engage the 3 brackets and install the 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Bracket

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   NOTE:

   • For vehicles with a front seat airbag assembly, the separate type front seatback cover with pad must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.
   • Make sure that the strap is not twisted after installing the nut.
   • Install the brackets securely.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

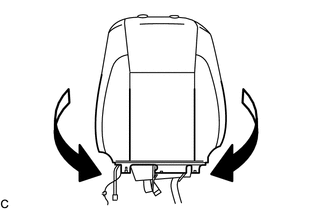

   Return the separate type front seatback cover to its original position.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

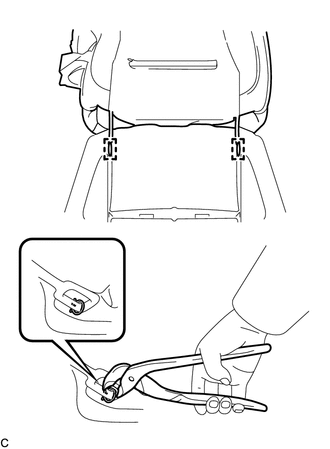

   Using hog ring pliers, install 2 new hog rings.

   NOTE:

   • Be careful not to damage the separate type front seatback cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

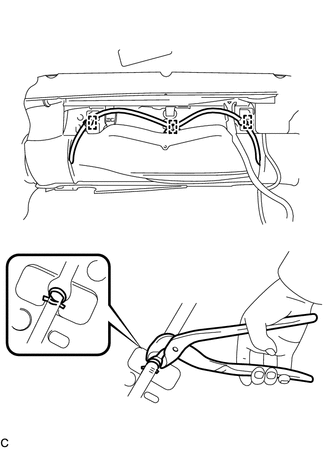

   Using hog ring pliers, install 3 new hog rings.

   NOTE:

   • Be careful not to damage the separate type front seatback cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

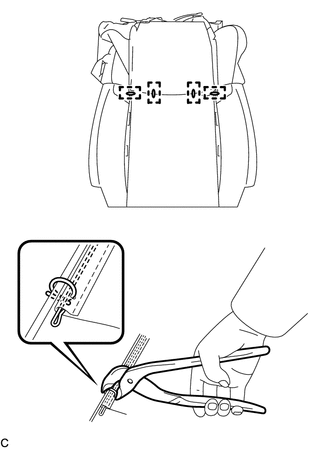

   Using hog ring pliers, install 7 new hog rings.

   NOTE:

   • Be careful not to damage the separate type front seatback cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

1. Engage the 4 guides to install the separate type front seatback assembly to the separate type front seat cushion assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 4 bolts.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

3. w/ Seat Heater System:
   1. Engage the clamp.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Connect the connector.
4. Engage the claw and 3 clamps to install the front seat airbag assembly wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Seat Clamp

5. Install the front seat airbag assembly wire harness to the seat clamp.
6. Engage the fastener to secure the front seat airbag assembly wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

7. Engage the 2 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the claw and guide to install the front seat inner cushion shield.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the claw and 4 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the claw, guide and 2 clips to install the front seat cushion shield.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the claw and 4 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

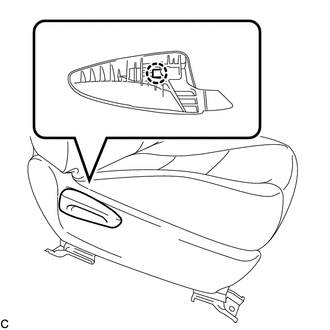

1. Engage the claw to install the reclining adjuster release handle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Connect the rubber band of the separate type front seatback cover.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1
