Disassembly [02/2014 - 11/2016]: Procedure

  1. REMOVE OCCUPANT DETECTION ECU

    Refer to PROCEDURE - Step 3

  2. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  4. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

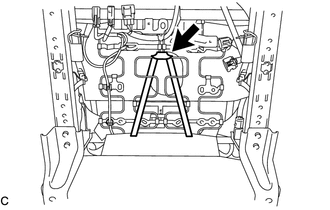

    1. GTY447329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the rubber band of the separate type front seatback cover.

  5. REMOVE RECLINING ADJUSTER RELEASE HANDLE
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the reclining adjuster release handle.

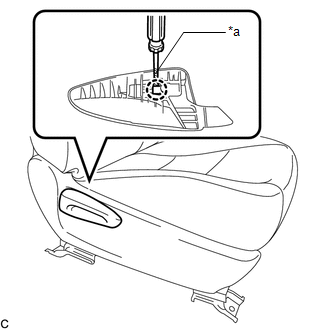

      GTY442791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  6. REMOVE FRONT SEAT CUSHION SHIELD
    1. Disengage the claw and 4 guides.
      GTY424559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw, guide and 2 clips to remove the front seat cushion shield.
      GTY424567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT SEAT INNER CUSHION SHIELD
    1. Disengage the claw and 4 guides.
      GTY424566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and guide to remove the front seat inner cushion shield.
      GTY450567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Disengage the 2 hooks.

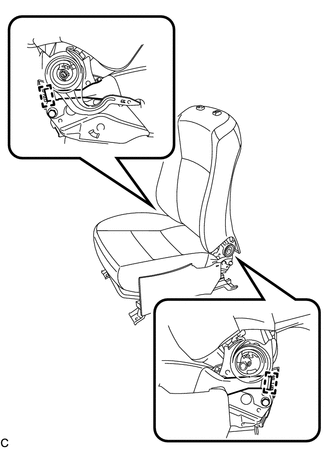

      GTY447338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

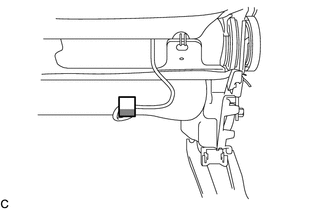

    2. Disengage the fastener and separate the front seat airbag assembly wire harness.
      GTY435908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    3. Separate the front seat airbag assembly wire harness from the seat clamp.

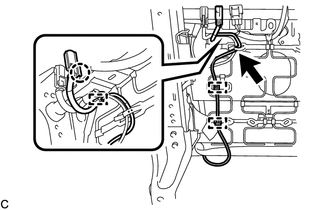

      GTY432023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Seat Clamp
    4. Disengage the claw and 3 clamps to separate the front seat airbag assembly wire harness.
    5. w/ Seat Heater System:

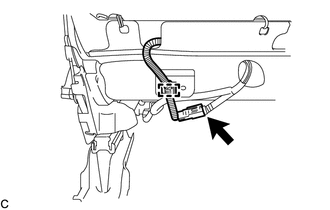

      1. Disconnect the connector.
        GTY447489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
    6. Remove the 4 bolts.

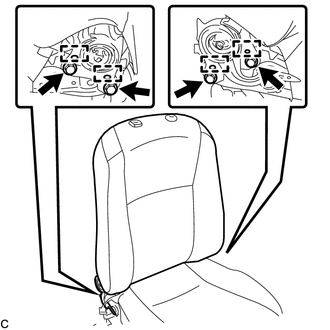

      GTY447377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
  9. REMOVE FRONT SEAT HEADREST SUPPORT ASSEMBLY
    1. Remove the 7 hog rings.
      GTY427302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

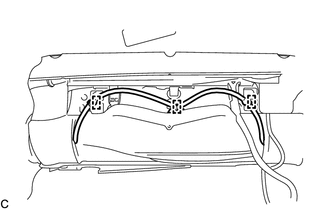

    2. Remove the 3 hog rings.
      GTY455532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 hog rings.

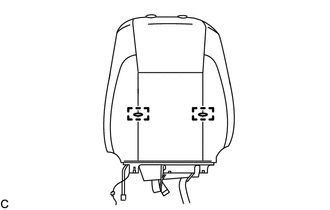

      GTY447877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn back the separate type front seatback cover.

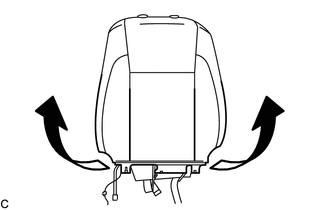

      GTY447495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 nuts and disengage the 3 brackets.

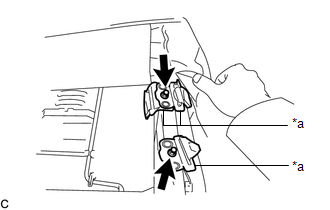

      GTY443487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
    6. Disengage each claw and remove the 2 front seat headrest support assemblies.
      GTY429714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 4 hog rings.

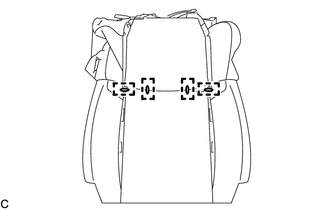

      GTY447499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

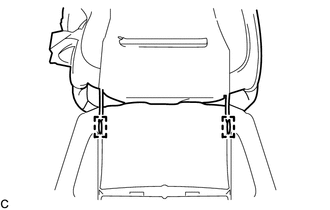

    2. Remove the 2 hog rings to remove the separate type front seatback cover from the separate type front seatback pad.
      GTY447493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 5

  13. REMOVE FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 12

  14. REMOVE FRONT SEATBACK EDGE PROTECTOR
    1. Disengage each claw to remove the 2 front seatback edge protectors.
      GTY449496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEATBACK HOOK
    1. Disengage the 2 claws.
      GTY447501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

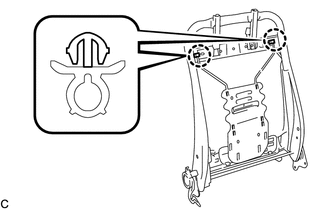

    2. Remove the 2 front seatback hooks from the separate type front seatback spring assembly.

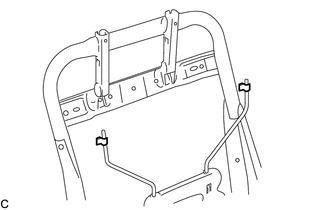

      GTY455529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. w/ Seat Heater System:
      1. Disengage the 3 clamps.
        GTY423579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 11 hooks and remove the separate type front seat cushion cover with pad.
      GTY424550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Remove the 2 hog rings.

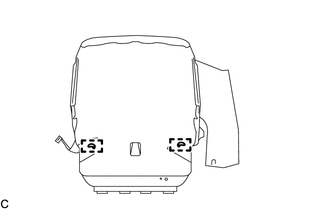

      GTY447484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

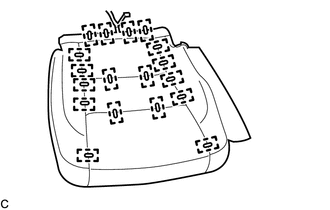

    2. Remove the 18 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.
      GTY447485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 5

  19. REMOVE FRONT SEAT AIRBAG SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 12

  20. REMOVE RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH
    1. Disengage the 3 claws and guide to remove the RH seat front seat cushion edge protector LH.
      GTY424557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE SEAT TRACK ADJUSTING HANDLE

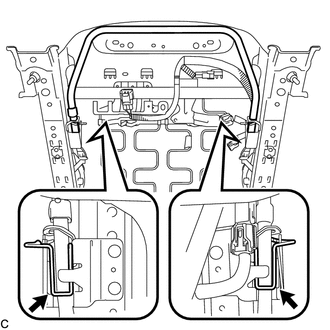

    1. Disengage the 2 springs to remove the seat track adjusting handle.
      GTY447332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT SEAT WIRE
    1. Disengage each claw and each clamp to remove the front seat wire.
  24. REMOVE NO. 1 SEAT WIRE (w/ Seat Heater System)
    1. Disengage each claw and each clamp to remove the No. 1 seat wire.
  25. REMOVE SEAT ADJUSTER COVER CAP

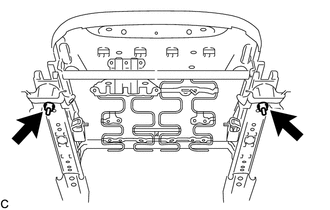

    1. Remove the 2 seat adjuster cover caps.
      GTY447487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
