Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    for Manual Seat: Refer to REMOVAL [02/2014 - 11/2016]

    for Power Seat: Refer to REMOVAL [02/2014 - ]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    for Manual Seat: Refer to PROCEDURE - Step 4

    for Power Seat without Climate Control Seat System: Refer to PROCEDURE - Step 6

    for Power Seat with Climate Control Seat System: Refer to PROCEDURE - Step 7

  3. REMOVE RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)

    Refer to PROCEDURE - Step 5

  4. REMOVE FRONT SEAT CUSHION SHIELD (for Manual Seat)

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT SEAT CUSHION SHIELD (for Power Seat)

    for Driver Side: Refer to PROCEDURE - Step 10

    for Front Passenger Side: Refer to PROCEDURE - Step 11

  6. REMOVE FRONT SEAT INNER NO. 1 CUSHION SHIELD (for Power Seat)

    Refer to PROCEDURE - Step 12

  7. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Manual Seat)

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Power Seat)

    for Driver Side: Refer to PROCEDURE - Step 8

    for Front Passenger Side: Refer to PROCEDURE - Step 9

  9. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    for Manual Seat: Refer to PROCEDURE - Step 8

    for Power Seat: Refer to PROCEDURE - Step 19

  10. REMOVE FRONT SEAT HEADREST SUPPORT ASSEMBLY

    for Manual Seat: Refer to PROCEDURE - Step 9

    for Power Seat: Refer to PROCEDURE - Step 20

  11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    for Manual Seat: Refer to PROCEDURE - Step 10

    for Power Seat: Refer to PROCEDURE - Step 21

  12. REMOVE FRONT SEAT AIRBAG ASSEMBLY (for Manual Seat)
    WARNING:

    When storing the front seat airbag assembly, keep the airbag deployment side facing upward.

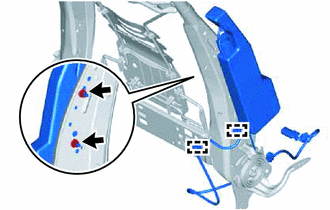

    1. Disengage the 2 clamps.
      GTY451211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and front seat airbag assembly.
      WARNING:
      • The nuts must not be reused.
      • Make sure that the separate type front seatback spring assembly is not deformed. If it is, replace it with a new one.
  13. REMOVE FRONT SEAT AIRBAG ASSEMBLY (for Power Seat)
    WARNING:

    When storing the front seat airbag assembly, keep the airbag deployment side facing upward.

    1. Disengage the 2 clamps.
      GTY452816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and front seat airbag assembly.
      WARNING:
      • The nuts must not be reused.
      • Make sure that the separate type front seatback spring assembly is not deformed. If it is, replace it with a new one.
